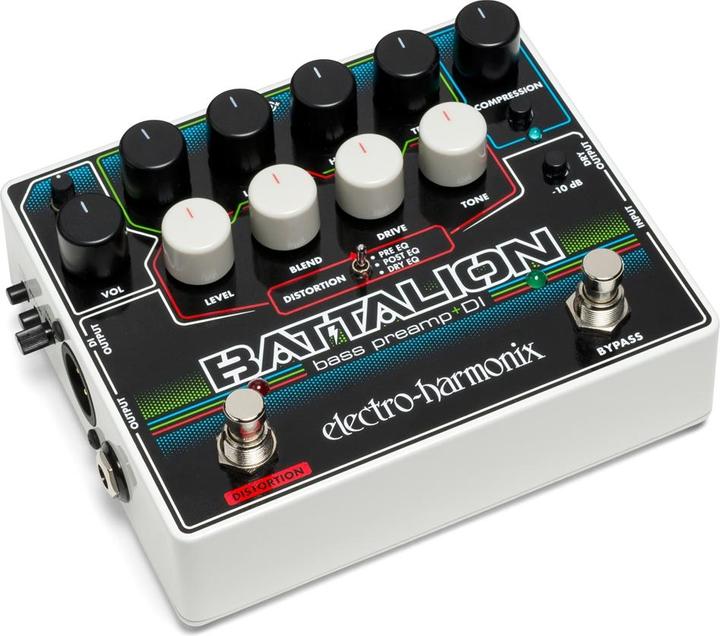

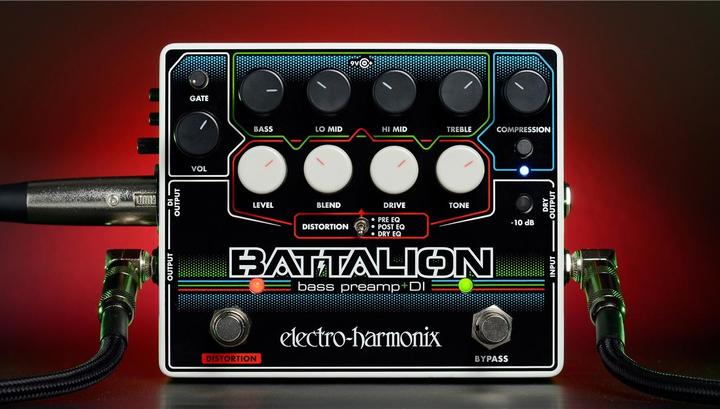

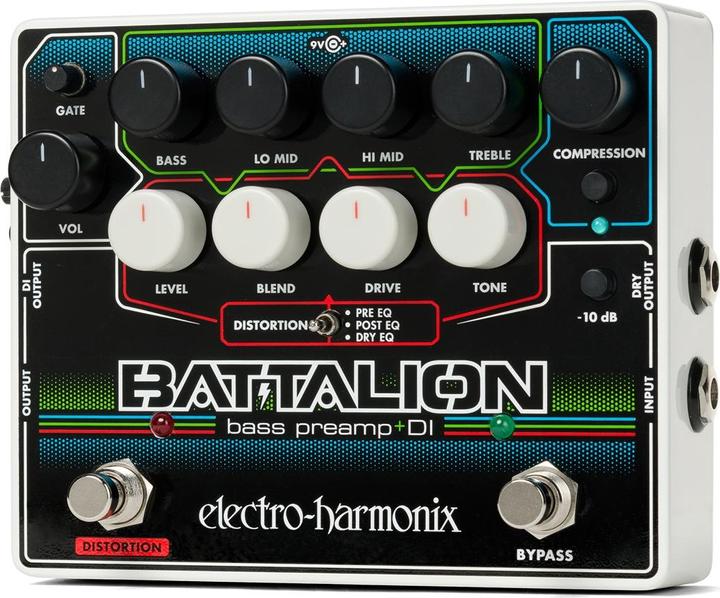

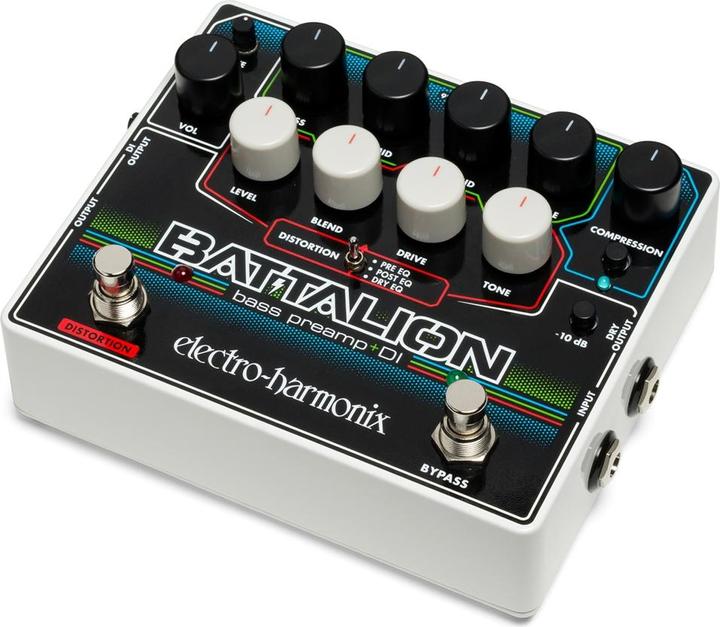

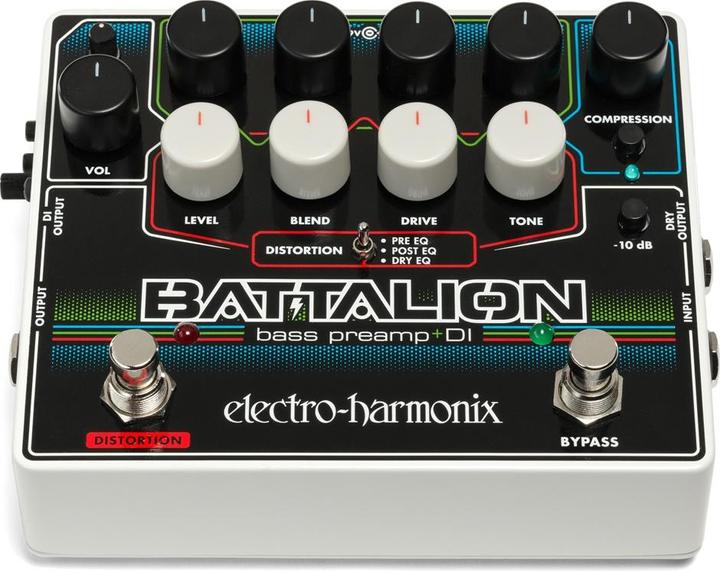

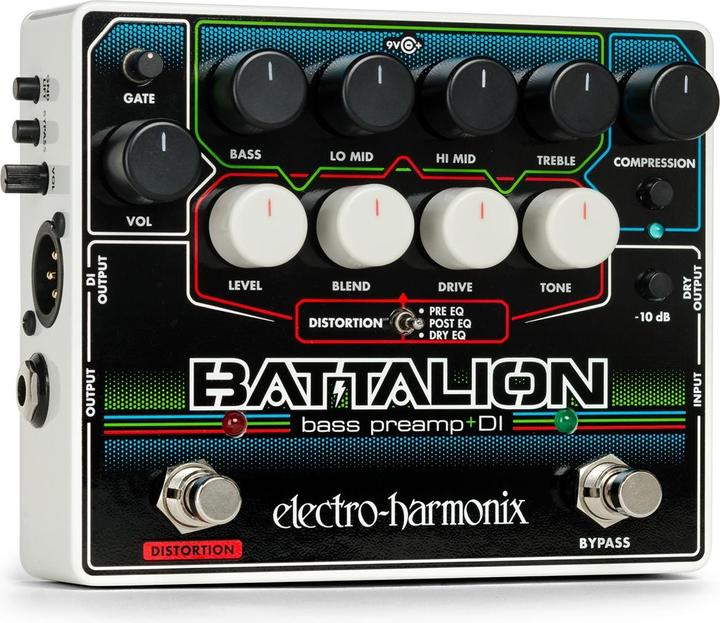

Electro-Harmonix Battalion

Bass Preamp & DI
Flexible bass preamp and DI deliver powerful tone-shaping capabilities in a rugged, pedalboard-friendly package!The EHX Battalion bass preamp and DI is packed with a four-band equalizer, a full-featured MOSFET distortion section with three signal path options, a compressor, a noise gate and comprehensive I/O. An all-in-one tone bin for your bass guitar.

• Four band EQ specifically for bass guitars. Includes controls for Bass (below 200Hz), Lo Mid (boost/cut at 280Hz) Mid (boost/cut at 750Hz) and Treble (boost/cut above 2kHz).
• The distortion section of the Battalion delivers an impressive range of distorted bass sounds
• Distortion section features Level, Blend, Drive and Tone controls as well as a dedicated footswitch
• Three signal flow modes result in unique sound variations. Pre EQ, distortion comes before EQ. Post EQ, distortion comes after EQ and Dry EQ, only the dry signal mixed with the Blend control is affected by EQ
• Compressor with dedicated push button, volume knob and LED adds thump and sustain to your bass sound
• Noise gate with adjustable threshold control eliminates noise and hum while preserving your attack and original tone
• Flexible I/O allows the Battalion to fit perfectly in any bass rig or application
• 1/4 input jack includes switchable 10dB pad
• Power supply included

SPECIFICATIONS

• Circuitry: Analogue
• Bypass: Buffered bypass
• Audio: Mono
• Power supply: 9.6VDC-200mA (mains adapter included)
• Dimensions: 14.6 x 12.1 x 6.4 cm
• Power consumption: 100mA
• Year of release: 2017.
