EKWB EK-Loop VTX PWM motor

Price in EUR including VAT, free shipping
was EUR119,–
Ratings
Delivered between Thu, 26/6 and Sat, 28/6
10 items in stock at supplier

Product details

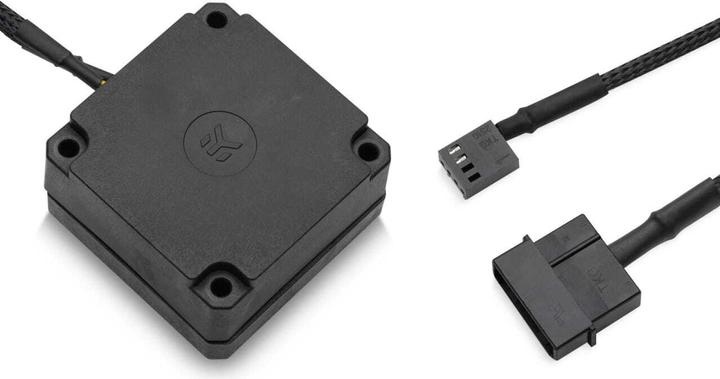

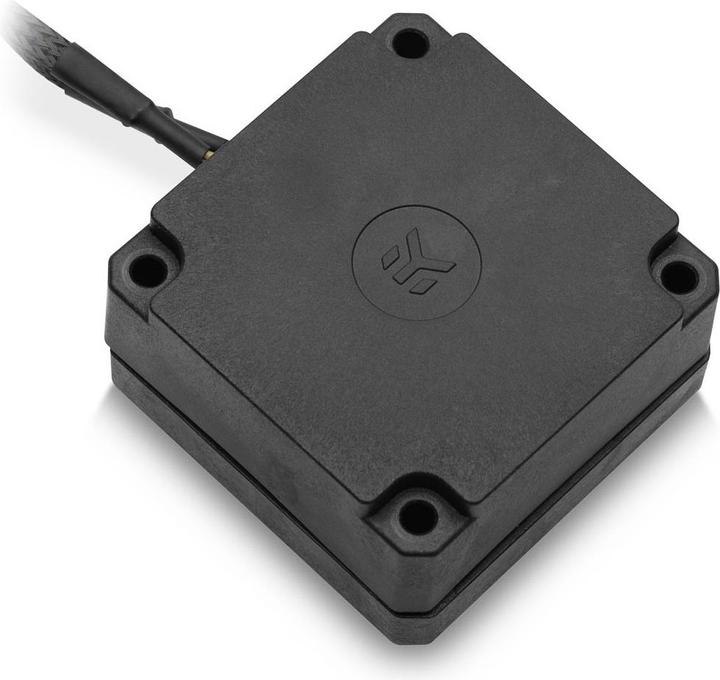

The EK Water Blocks EK-Loop VTX PWM Motor is a high-performance water pump specifically designed for custom loop water cooling systems. It allows for precise control of the pump speed via PWM (Pulse Width Modulation), enabling adjustments to meet the specific requirements of the cooling loop. This pump is compatible with all DDC holders and offers an impressive combination of pressure build-up and flow rate, making it ideal for compact cases. With a maximum pressure of up to 5.3 meters and a flow rate of 1100 L/h, it can efficiently support even demanding cooling configurations. The use of an optional convection heat sink is possible but not mandatory, providing additional flexibility in installation. The pump is approved for operation with water and water/glycol mixtures and can be operated in a temperature range of up to 60 degrees Celsius.

  • PWM-controlled speed regulation for optimal adjustment
  • Compatible with all DDC holders for versatile applications
  • Maximum pressure of 5.3 meters for effective cooling
  • Flow rate of 1100 L/h for sufficient coolant flow
  • Robust construction with high-quality materials such as copper coils and stainless steel shaft.

Key specifications

Max. flow
1100 l/h
Max. delivery head
5.30 m
Pump Power connection

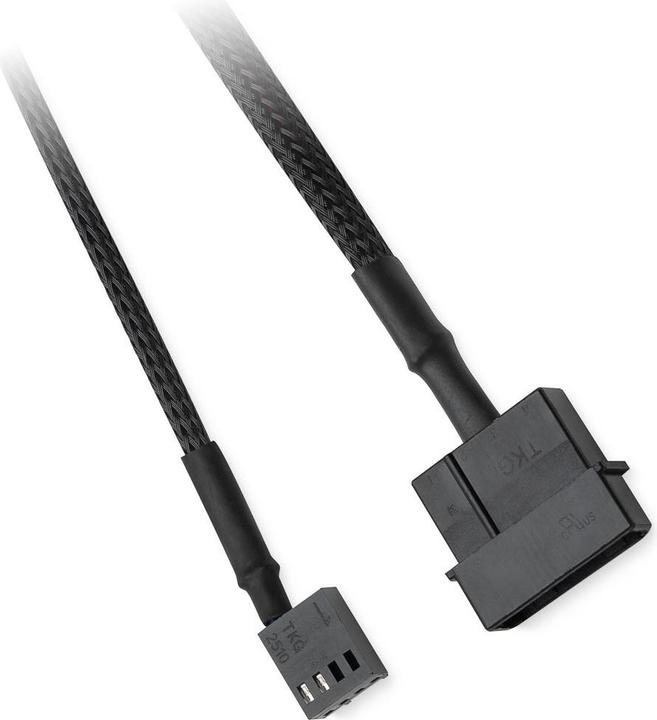

4PIN Molex, 4PIN PWM
Item number
46306362

General information

Manufacturer
EKWB
Category
Water cooling pumps
Manufacturer no.
3831109915547
Release date
5/6/2024

Water cooling pump properties

Max. delivery head
5.30 m
Max. flow
1100 l/h
Voltage
12 V
Pump Power connection
4PIN Molex, 4PIN PWM
Max. system temperature
60 °C
Power consumption
18 W
Material
Copper coils, EPDM O-rings, Graphite bushing, NORYL GFN2, Stainless steel shaft
Approved liquids
Water, water/glycol mixture
Possible control range
PWM

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
EK-Loop VTX PWM motor

Product dimensions

Weight
312 g

Package dimensions

Length
11.70 cm
Width
10.60 cm
Height
8 cm
Weight
314 g

14-day cancellation right
30-day right of return
24 Months statutory warranty
