Eaton Ellipse PRO 650 DIN
0.65 VA, 400 W, Line-interactive UPSPrice in EUR including VAT
free shipping

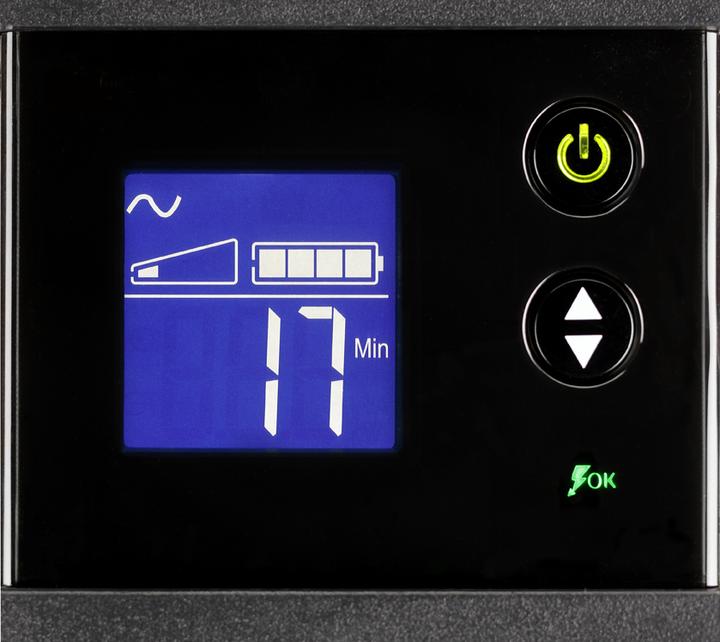

The Eaton Ellipse PRO 650 650VA is a line-interactive UPS specifically designed to protect workstations with demanding applications. The Ellipse PRO features an LCD display for real-time status and measurements, 4 outlets (3 with battery backup and surge protection and one with surge protection only). The UPS includes Eco Control sockets that allow for energy savings of up to 20%, and an Advanced Surge Reduction (ASR) that fully complies with the IEC 616431-1 standard. This UPS can be mounted as a tower, in a rack, or on the wall. The Ellipse PRO also includes the Eaton Intelligent Power Manager software (available for download). It is an ideal protection solution for all computers.
Operating time at full load | 1 min |
Model | Desktop |
Scope of application | Server room |
Plug type | C14 |
Item number | 9962906 |
UPS type | Line-interactive UPS |
Power output | 400 W |
Output power capacity | 0.65 VA |
Model | Desktop |
Rack Unit | 2U |
UPS protection functions | Protection for Modem/Fax/DSL |
Scope of application | Server room |
Plug type | C14 |
USB ports | USB-A |
Network connections | RJ45 (1x) |
Data ports | PS/2 (1x) |
input voltage | 150 - 285 V |
output voltage | 230 V |
Input frequency | 50 - 60 Hz |
Output frequency | 50 Hz |
Efficiency battery operation | 95 % |
Maximum operating temperature | 35 °C |
Operating temperature | 0 - 40 °C |
Operating humidity | 0 - 95% |
Battery category | Industry battery |
Battery | Rechargeable battery |
Battery type | Lead–acid battery |
Battery size | Device specific |
Number of cells | 1 x |
Battery weight per cell | 2400 g |
Voltage | 150 V |
Capacity | 7 Ah |
Operating time at full load | 1 min |
Operating time at half load | 9 min |
Country of origin | China |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Cable set, Software, UPS |
Items per sales unit | 1 x |
Height | 260 mm |
Weight | 6.60 kg |
Width | 82 mm |
Length | 285 mm |
Length | 38 cm |
Width | 31.50 cm |
Height | 13.50 cm |
Weight | 12.24 kg |
