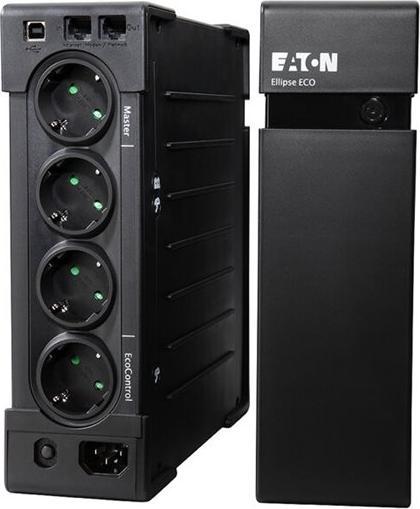

The Eaton Ellipse ECO is a slim-line power supply protection with built-in high-performance overvoltage protection (in accordance with the IEC 61643-1 standard). With its efficient electrical design and EcoControl function, the Eaton Ellipse ECO helps you save up to 25% energy compared to previous generation UPSs.
Operating time at full load | 9 min |
Model | Desktop |
Scope of application | Server room |
Plug type | Afsnit, BS 1363, BS 546, CEE 7/6 |
Item number | 10157907 |
UPS type | Standby UPS |
Power output | 400 W |
Output power capacity | 650 VA |
Model | Desktop |
Rack Unit | 2U |
UPS protection functions | Protection for Modem/Fax/DSL |
Scope of application | Server room |
Plug type | Afsnit, BS 1363, BS 546, CEE 7/6 |
Network connections | RJ45 (1x) |
input voltage | 161 - 284 V |
output voltage | 220 - 240 V |
Input frequency | 50 - 60 Hz |
Output frequency | 50 - 60 Hz |
Efficiency full load | 0.98 % |
Efficiency battery operation | 98 % |
Battery category | Industry battery |
Battery | Rechargeable battery |
Battery type | VRLA |
Battery size | Device specific |
Number of cells | 1 x |
Battery weight per cell | 2350 g |
Voltage | 230 V |
Operating time at full load | 9 min |
Operating time at half load | 9 min |
Country of origin | China |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Optional |
Items per sales unit | 1 x |
Height | 263 mm |
Weight | 3.60 kg |
Width | 81 mm |
Length | 235 mm |
Length | 33 cm |
Width | 14 cm |
Height | 29 cm |
Weight | 4.10 kg |
