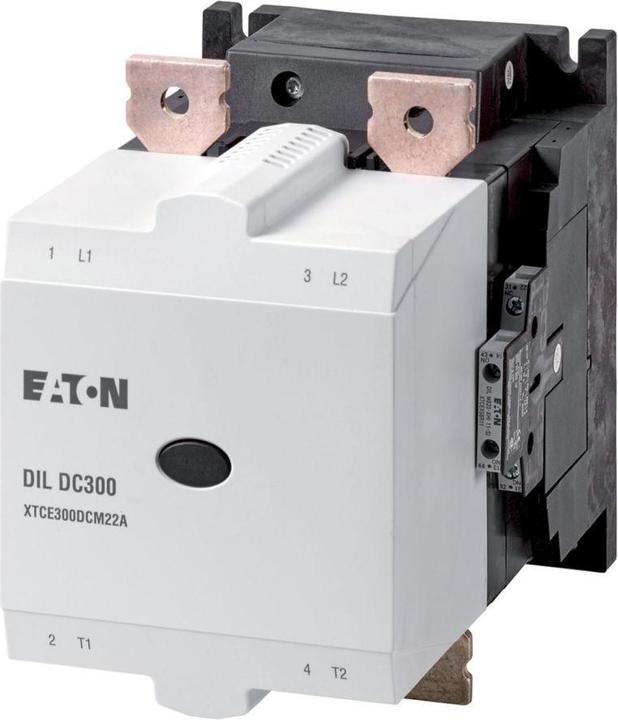

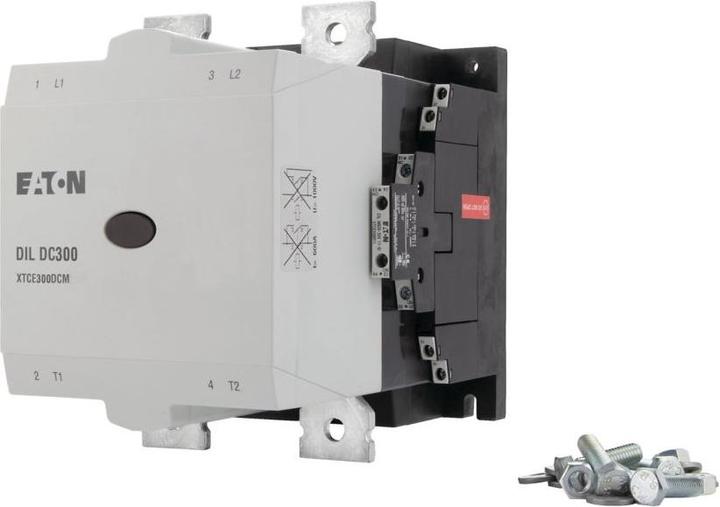

Eaton DC power contactor DILDC300/22 (RDS250)

Manufacturer: Eaton
Designation: DC power contactor 2S, 2Ö, 300A, DC-1
Type: DILDC300/22 (RDS250)
Rated control supply voltage Us at AC 50 Hz: 110-250 V
Rated control supply voltage Us at AC 60 Hz: 110-250 V
Rated control supply voltage Us at DC: 110-350 V
Type of voltage for actuation: AC/DC
Rated operating power for DC-3 / DC-5 at 440 V: 0 kW
Rated operating current Ie for DC-3 / DC-5 at 440 V: 0 A
Suitable for series installation: No
Number of auxiliary contacts as make contacts: 2
Number of auxiliary contacts as break contacts: 2
Connection type main circuit: Connection rail
Number of make contacts as main contacts: 2

Further details: DC contactor, world market device UL/CSA, CCC, small dimensions, comfort series with possible direct control via PLC, with integrated suppressor circuit in the control electronics, according to IEC/EN60947, with wide range coil AC/DC, electronically controlled, minimized pick-up and holding power, increased electromagnetic compatibility, control cable connections with screw terminals, auxiliary contacts 2S 2Ö mounted, safe separation to EN 61140, positively driven contacts, screw mounting, can be used up to 1000V, degree of protection IP00, finger-safe with terminal cover to EN50274, life 1 million switching cycles mechanical, available accessories: lateral auxiliary switches.
