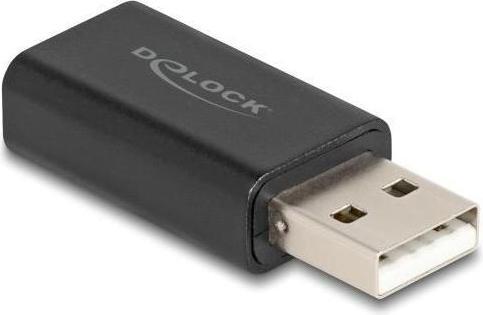

The Delock USB Gaming DAC is a compact and portable digital-to-analog converter (DAC) that can significantly enhance the audio experience of gaming headsets and headphones.

High-Resolution Audio
The sound adapter supports high-resolution audio formats up to 24 Bit / 96 kHz, providing a crystal-clear sound profile with impressive detail fidelity.

Seamless Compatibility
The Gaming DAC can be used with a variety of audio devices, including gaming headsets, headphones, and external speakers.

Compact Design
The compact design of the Gaming DAC makes it an ideal solution for mobile gamers or sound enthusiasts. It can easily be transported in a backpack or carry-on luggage, allowing for high-quality audio playback on the go.

Plug and Play
Thanks to USB Plug and Play, the adapter is ready to use immediately, and no driver installation is required. The adapter works with all common operating systems such as Windows, Mac OS, Chrome OS, Linux, and Android.

Technical Specifications

• Connections:

1 x USB 2.0 Type-A plug
1 x 3.5 mm 4-pin jack (CTIA standard)

• Chipset: KT02F20 + MAX97220A
• Supported sample rates: 44.1 / 48 / 96 kHz (depending on the system and connected devices)

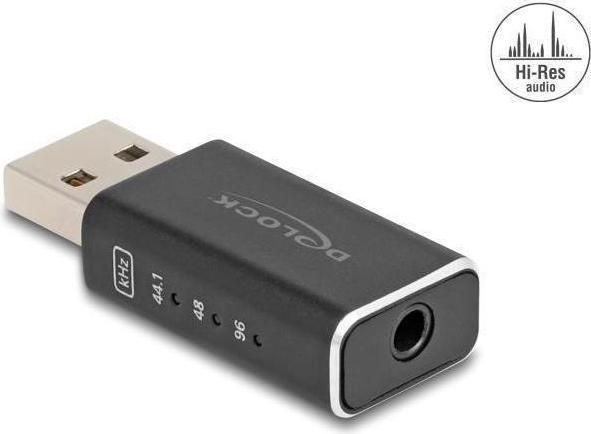

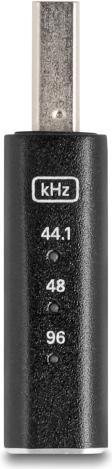

• LED display for sample rates
• USB audio device specification 1.0
• Up to 24 Bit / 96 kHz sample rate for playback and 24 Bit / 48 kHz for recordings
• Signal-to-noise ratio (SNR): approx. 103 dB
• Frequency response: 20 Hz - 20 kHz +/- 0.5 dB
• Total harmonic distortion + noise (THD+N): 0.003 % @ 1 mW
• Headphone drive ability: 16 - 300 Ohm
• USB bus power
• Plug and Play
• Dimensions (LxWxH): approx. 41.8 x 17.2 x 9.8 mm

System Requirements

• Android 13.0 or higher
• Chrome OS 116.0 or higher
• Linux Kernel 6.2 or higher
• Mac OS 13.1 or higher
• Windows 10/10-64/11
• iPad Air (4th generation) or higher
• PC or notebook with a free...
