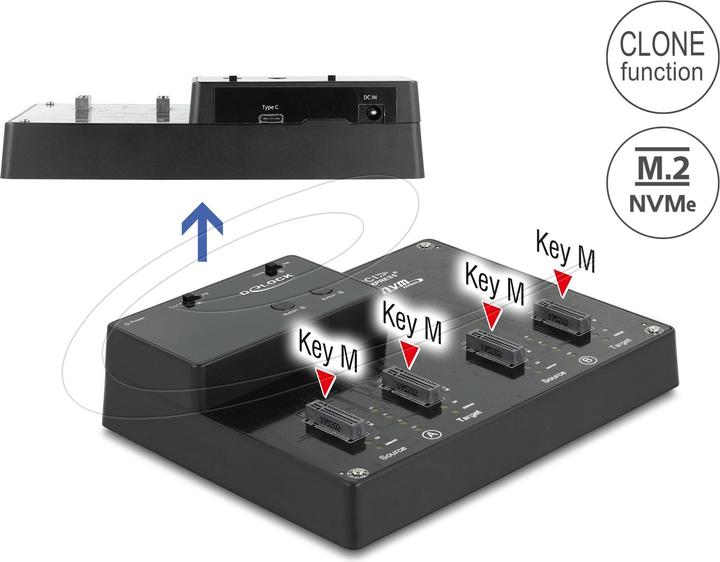

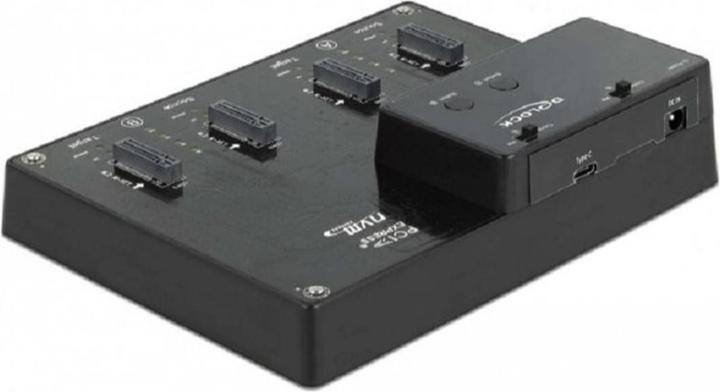

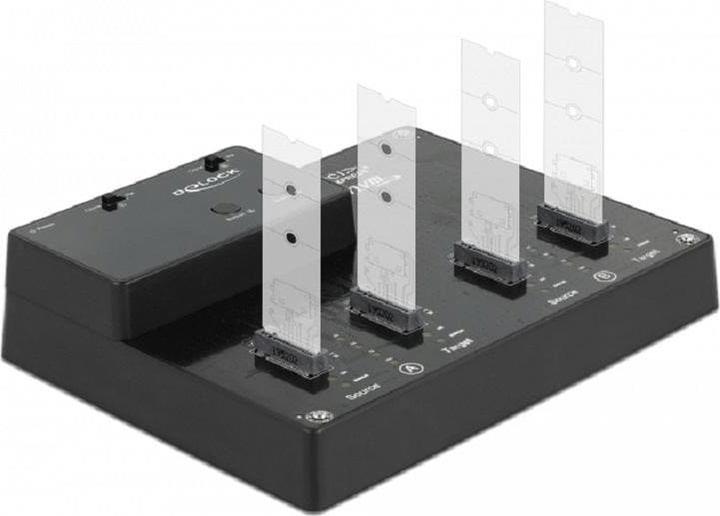

This M.2 docking station from Delock allows the operation of four M.2 PCIe NVMe SSDs and can be connected to a PC or laptop via USB. The included USB cable enables connection to a free USB-C port.

M.2 PCIe SSD Clone Function 2 x 2
The cloning function allows data to be copied from one SSD to another without the use of a PC. Since the docking station has four slots, two M.2 SSDs can be cloned simultaneously.

USB Connection and Separate Power Supply
Thanks to the USB connection and the included USB cable, the docking station can be easily connected to the computer. Additionally, the included power supply ensures sufficient power for the installed storage devices.

Specifications

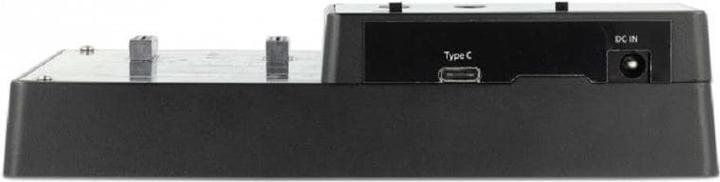

• Connections: 1 x USB 10 Gbps USB Type-C port, 4 x M.2 Key M slot, 1 x DC power socket
• Chipset: Asmedia ASM2362, ASM2806
• Supports M.2 modules with Key M or Key B+M based on PCIe (NVMe)
• Supports NVM Express (NVMe)
• Data transfer rate up to 10 Gbps
• Supports UASP
• Bootable

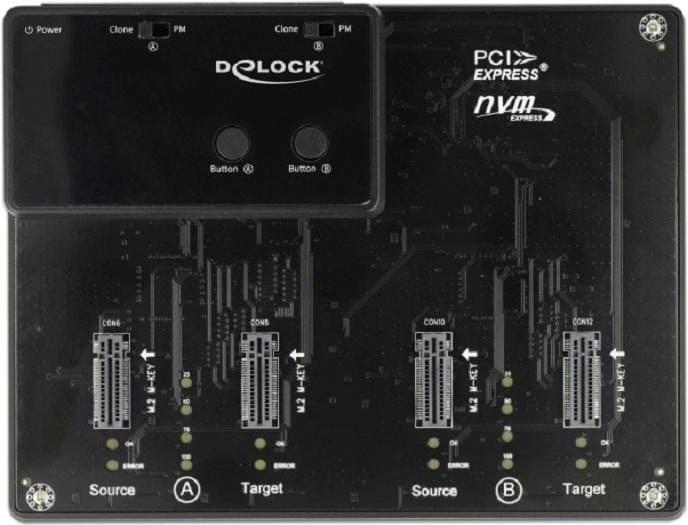

• LED indicators for power, access, and copy status
• Function buttons:
• 2 x mode switches
• 2 x clone buttons
• Dimensions (LxWxH): approx. 164 x 125 x 37 mm
• Hot Plug, Plug and Play

Power Supply Specifications

• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 1.5 A
• Output: 12.0 V / 4.0 A
• Outer dimensions, positive inside
• Inner diameter: approx. 2.1 mm
• Outer diameter: approx. 5.5 mm
• Length: approx. 10 mm

System Requirements

• Android 9.0 or higher
• Chrome OS 83.0 or higher
• iPad Pro (2018)
• Linux Kernel 5.4 or higher
• Mac OS 10.15.7 or higher
• Windows 8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-A port or device with a free USB Type-C port or with a free Thunderbolt 3 port

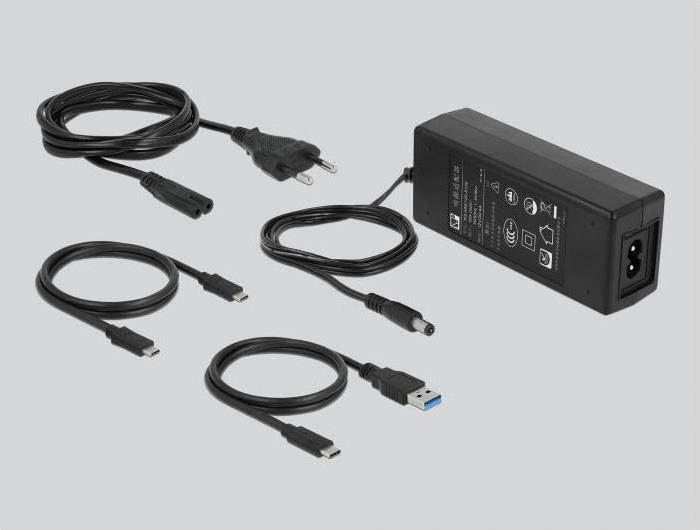

Package Contents

• M.2 docking station
• USB-C to USB-C cable, length approx. 45 cm
• USB-C to USB Type-A cable, length approx. 80 cm.
