Block PCB mount transformer 5.0VA 1x12 o/p
Price in EUR including VAT
Delivered between Wed, 17/12 and Fri, 19/12
More than 10 pieces in stock at supplier
More than 10 pieces in stock at supplier
Free shipping starting at 39,–
Product details
Secondary rated voltage: 12V AC
Nominal power: 5VA
Primary rated voltage: 230V AC
Number of outputs: 1
Length: 44mm
Width: 37mm
Depth: 33mm

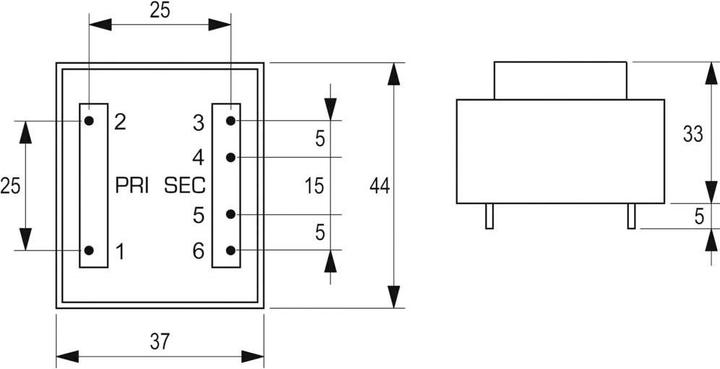

Dimensions: 44 x 37 x 33mm
Weight: 190g
Mounting type: Through hole mounting
Maximum temperature: +50°C
Minimum operating frequency: 50Hz
Maximum operating frequency: 60Hz
Complies with EN 61558, ENEC, and UL approval. For transformers with two 24V outputs, the secondary windings should not be connected in series. PCB mounted, 230V AC primary, VC/VCM series. One and two secondary windings for series or parallel connection. Molded with resin under vacuum to UL94-V0. Low capacitance between turns. Low noise. 100% electrical and breakdown testing. Extra mounting points for secure PCB mounting (25VA and 36VA).
transformer type | PCB transformer |
Power | 5 W |
Electric current | 0.42 A |
Output voltage | 12 V |
input voltage | 230 V |
Item number | 9935965 |
Manufacturer | Block |
Category | Transformer |
Manufacturer no. | VC 5,0/1/12 |
Release date | 22/10/2018 |
External links |
transformer type | PCB transformer |
input voltage | 230 V |
Output voltage | 12 V |
Electric current | 0.42 A |
Power | 5 W |
CO₂-Emission | |
Climate contribution |
Length | 44 mm |
Height | 44 mm |
Weight | 190 g |
Product Safety |
Specifications may include unverified machine translations.
