Secondary rated voltage = 2 x 115V ac
Rated power = 1.6kVA
Number of outputs = 2
length = 192mm
Width = 161mm
Depth = 180.5mm
Dimensions = 192 x 161 x 180.5mm
Temperature max = +40°C
Weight = 20.8kg

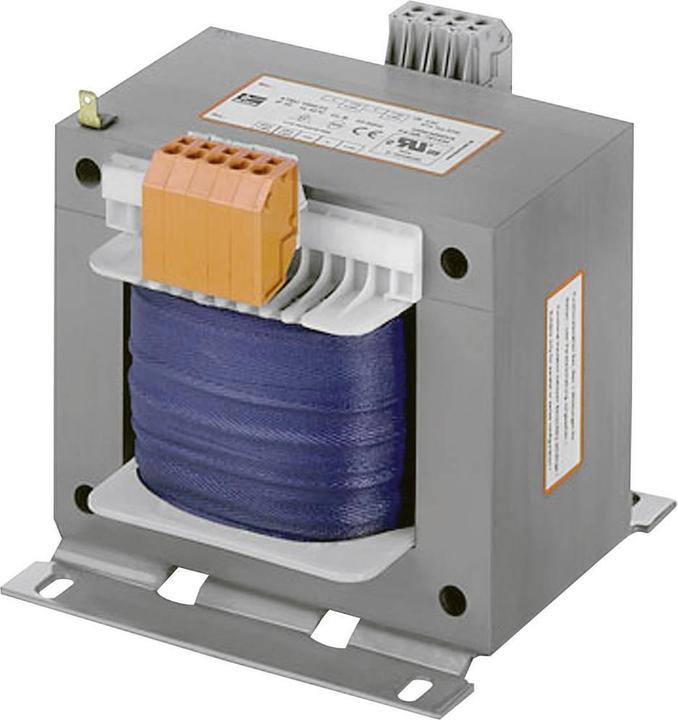

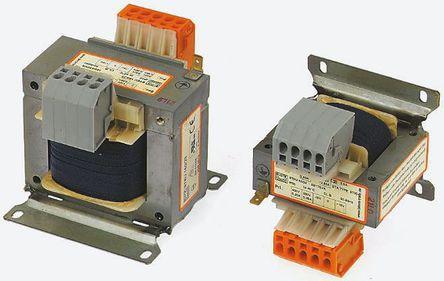

EN61558, VDE05700950. UL approved component for Canada and USA. Control, safety and isolation transformer. Suitable as safety and control isolation transformers Double secondary winding for series or parallel connection Transformers with 63, 100, 160 and 250 VA can also be mounted on 35 mm standard DIN rails All transformers with 4 mounting holes for panel mounting Easy installation 4 mm² cage terminals Insulation class B. Main connections 0 V, -15 V, +15 V, 230 V, 400 V. Due to the +15 and -15 V the primary voltage can be counterbalanced with 15 V Small inrush current High efficiency, low regulation.
