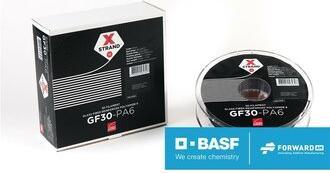

Ultrafuse PA6 GF30 contains 30% special glass fibers designed for filament making and 3D printing. PA6 GF30 has reduced warping compared to neat PA6, making Ultrafuse PA6 GF30 an excellent choice for industrial parts that can be printed on any standard FFF printer. With high wear and chemical resistance, along with high stiffness and strength, Ultrafuse PA6 GF30 is ideal for various applications in transportation or industrial tooling.

Tips & Tricks:

• Nozzle Temperature: 240-280 °C
• Bed Temperature: Passively heated, closed chamber
• Bed Modification: Glass
• Drying Procedure: Dry the filament at 100°C for at least 5 hours
• Support Materials: BVOH
• Nozzle Diameter: ≥ 0.6 mm
• Print Speed: 30-60 mm/sec

Material Properties:

• Tensile Strength (MPa): 78.3 / 46.4 (XY), 14.9 / 12.2 (ZX)
• Flexural Modulus (MPa): 4694 / 2861 (XY), 8103 / 4300 (XZ), 2371 / 1070 (ZX)
• Elongation at Break: 2.2 / 3.2 % (XY), 0.8 / 1.9 % (ZX)
• Impact Strength Charpy Unnotched (kJ/m²): 38.9 / 41.8 (XY), 45.5 / 48.8 (XZ), 2.2 / 3.1 (ZX)
• Impact Strength Izod Unnotched (kJ/m²): 38.4 / 36.9 (XY), 38.7 / 41.4 (XZ), 2.6 / 3.8 (ZX)
• HDT @ 0.45 MPa: 110 / 114 °C

BASF Quality Control:
The best raw materials available are selected from renowned suppliers. Production on state-of-the-art computer-controlled machinery guarantees a truly consistent filament, also between colors and batches. It will perform as expected every time. All BASF products are 100% traceable to the source.
