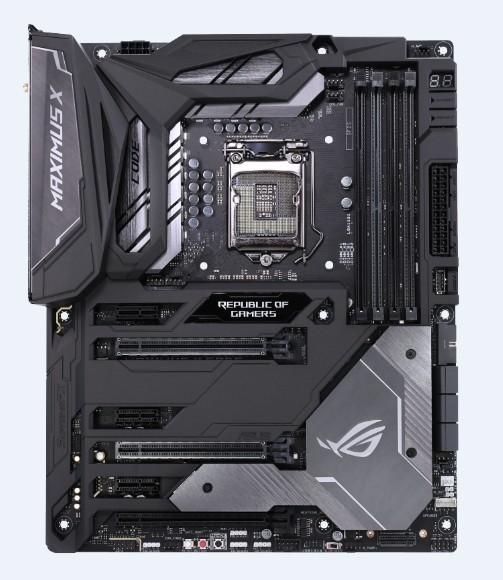

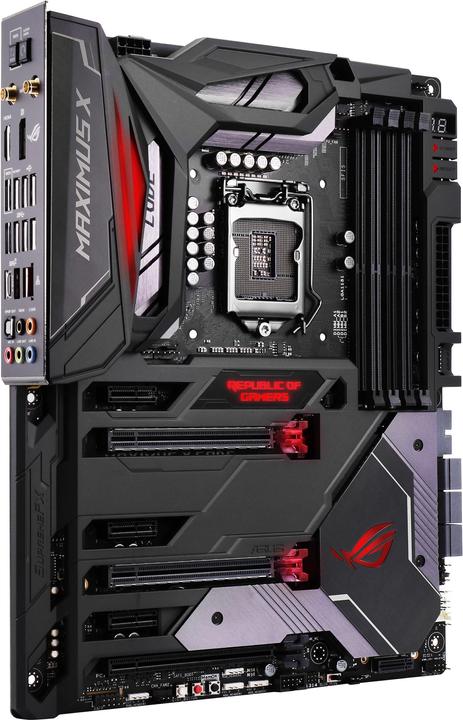

ASUS ROG Maximus X Code
LGA 1151, Intel Z370, ATXProduct details
The ASUS ROG Maximus X Code is a powerful motherboard designed for demanding PC users. It supports 8th generation Intel processors and offers a variety of features that ensure high performance and flexibility. With the LGA 1151 socket and Intel Z370 chipset, this motherboard is ideal for gaming and multimedia applications. It supports up to 64 GB of DDR4 SDRAM and allows for a wide range of RAM speeds, enabling optimal customization to meet different requirements. The integrated support for RAID levels 0, 1, 5, and 10 enhances data security and performance. Additionally, the motherboard provides comprehensive networking options, including an Intel LAN controller and support for various Wi-Fi standards, ensuring a stable and fast internet connection.
- Supports up to 64 GB of DDR4 RAM with speeds up to 4133 MHz
- Integrated support for RAID levels 0, 1, 5, and 10
- 3 PCI Express x16 expansion slots for graphics cards
- Intel LAN controller for reliable network connections
- Compatible with Windows 10 and UEFI BIOS.
Processor family | Core i3 8th Gen, Core i5 8th Gen, Core i7 8th Gen |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | S-ATA III (6x) |
Wireless transmission | Wi-Fi |
Mainboard features | Clear CMOS Button |
Item number | 6972494 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB0VX0-M0EAY0 |
Release date | 10/11/2017 |
External links |
Form factor | ATX |
Socket | LGA 1151 |
Chipset | Intel Z370 |
Mainboard features | Clear CMOS Button |
Operating system compatibility | Windows 10, Windows 10 Home, Windows 10 Pro |
BIOS type | UEFI AMI |
Wireless transmission | Wi-Fi |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac |
Processor family | Core i3 8th Gen, Core i5 8th Gen, Core i7 8th Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 64 GB |
Memory chip | DDR4-2133 |
Max. RAM OC | 4133 MHz |
Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz, 3000 MHz, 3200 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |

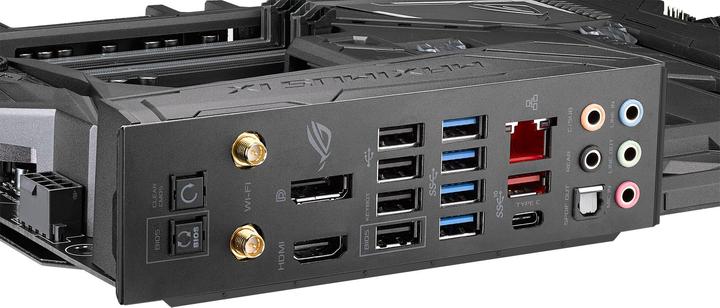

Video connections | HDMI (1x) |
Multi-GPU technology | AMD 3-Way CrossFireX, NVIDIA SLI |
Network connections | RJ45 (1x) |
Ethernet controller brand | Intel |
Ethernet controller | I219V |
Max. port speed | 1 Gbit/s |
Chip | ROG SupremeFX |
Audio channel | 7.1 Channel |
Audio Connections | Coaxial S/PDIF (1x) |
Internal connection options | S-ATA III (6x) |
Expansion slot | PCI Express x1 (3x), PCI Express x16 (3x) |
Number of fan connector | 5 |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
CO₂-Emission | |
Climate contribution |
Scope of delivery | S-ATA cable, User manual |
Length | 305 mm |
Width | 244 mm |
Height | 244 mm |
Length | 11 cm |
Width | 31 cm |
Height | 37 cm |
Weight | 2.90 kg |
