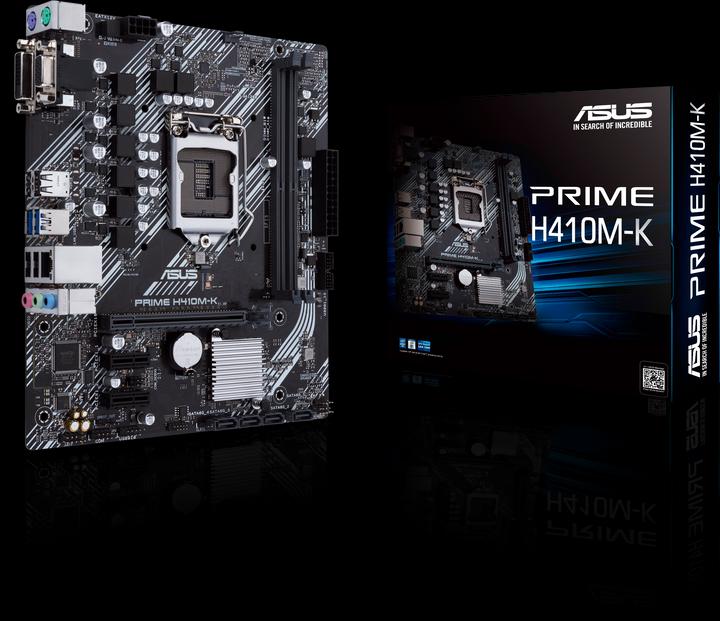

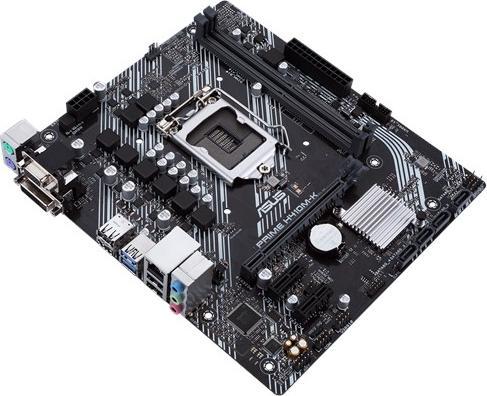

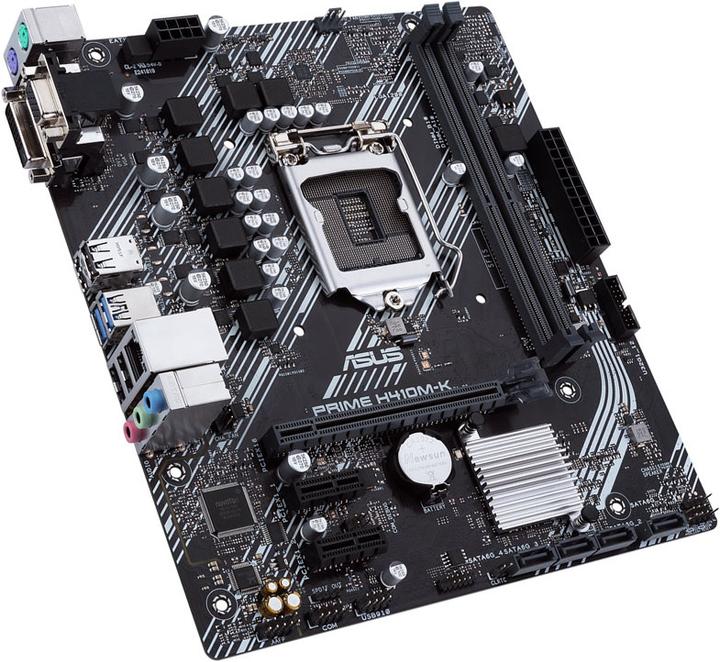

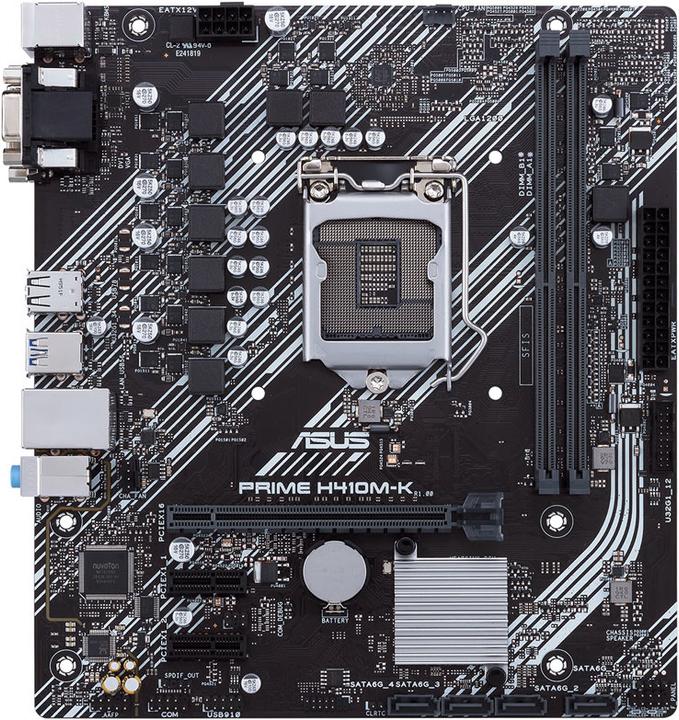

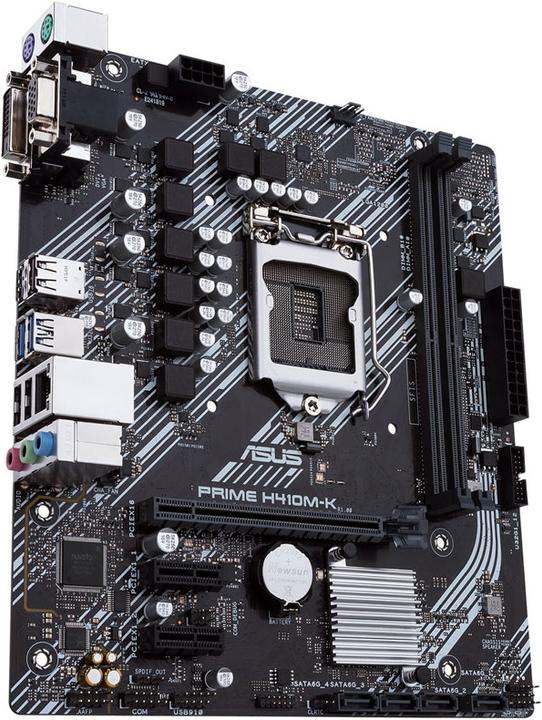

ASUS PRIME H410M-K, Intel H410 motherboard - socket 1200
LGA 1200, Intel H410, mATXProduct details
The ASUS PRIME H410M-K is a powerful Micro ATX motherboard designed for Intel LGA 1200 socket processors. It supports a variety of Intel processors, including the Celeron, Pentium, and Core families, and offers a maximum RAM capacity of up to 64 gigabytes. Equipped with the Intel H410 chipset, this motherboard provides reliable performance and a range of connectivity options. The integrated support for USB 3.2 Gen 1 ensures fast data transfers, while the Gigabit LAN feature guarantees a stable network connection. The board also offers multiple video outputs, including HDMI, DVI-D, and VGA, making it a flexible solution for various applications. Support for HD audio with 8 channels delivers an impressive sound experience, ideal for multimedia applications.
- Supports up to 64 GB DDR4 RAM for high performance
- Integrated support for USB 3.2 Gen 1 for fast data transfers
- Versatile video outputs: HDMI, DVI-D, and VGA
- Gigabit LAN for stable network connections
- Compatible with Windows 10 for broad application support.
Processor family | Celeron, Core i3, Core i5, Core i7, Core i9, Pentium |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 2 x |
Internal connection options | S-ATA III (4x) |
Mainboard features | Front panel audio connector |
Item number | 13424504 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB13I0-M0EAY0 |
Release date | 13/7/2020 |
External links |
Form factor | Micro ATX (mATX) |
Socket | LGA 1200 |
Chipset | Intel H410 |
Mainboard features | Front panel audio connector |
Operating system compatibility | Windows 10, Windows 10 Home |
BIOS type | UEFI AMI |
Processor family | Celeron, Core i3, Core i5, Core i7, Core i9, Pentium |
Number of memory modules (RAM) | 2 x |
Max. memory (RAM) | 64 GB |
Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz, 2933 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |

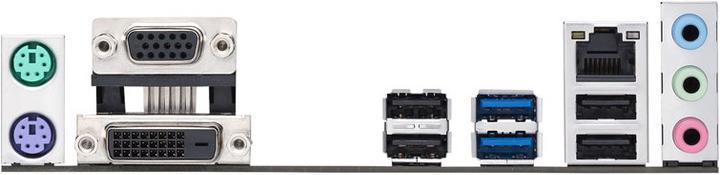

Video connections | DVI-D (1x), VGA (1x) |
Video connection version | HDMI 1.4b |
Network connections | RJ45 Gigabit Ethernet (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek RTL8111H |
Chip | Realtek ALC887 |
Audio channel | 7.1 Channel |
Audio Connections | HDMI (1x) |
Internal connection options | S-ATA III (4x) |
Expansion slot | PCI Express x16 (1x) |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
CO₂-Emission | |
Climate contribution |

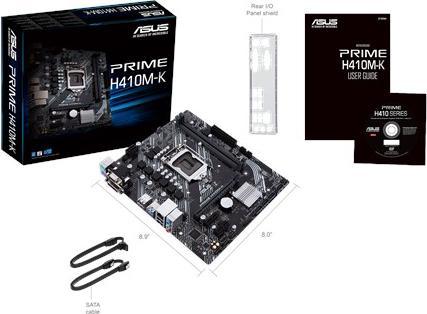

Scope of delivery | Sata Cables |
Length | 226 mm |
Width | 226 mm |
Height | 203 mm |
Length | 28 cm |
Width | 27 cm |
Height | 6 cm |
Weight | 810 g |
