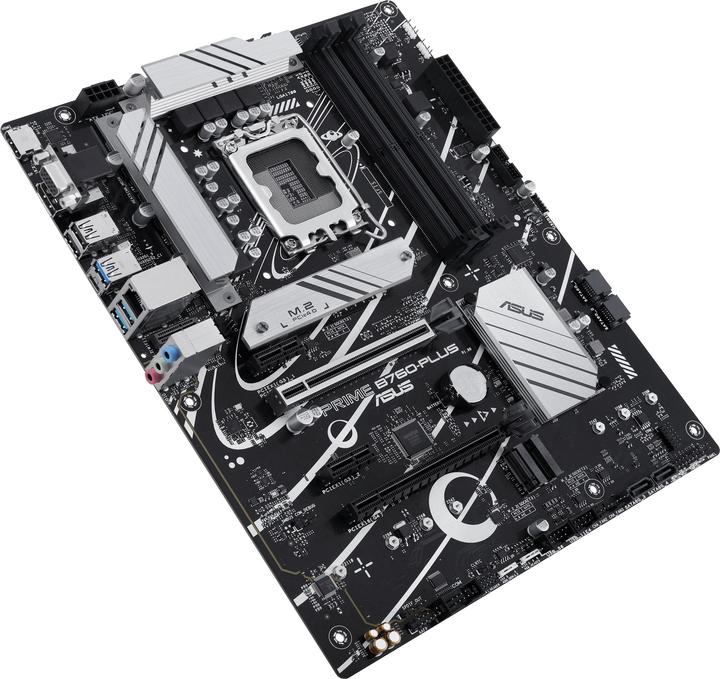

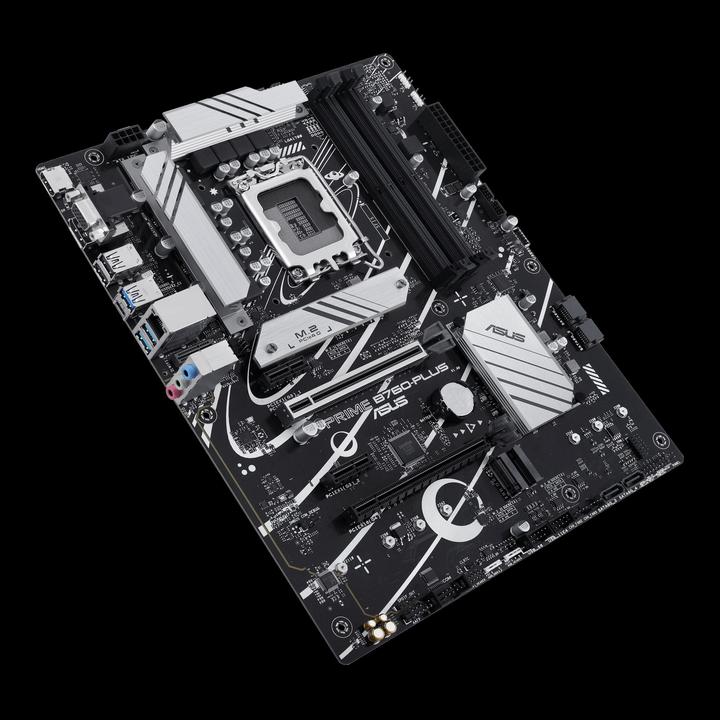

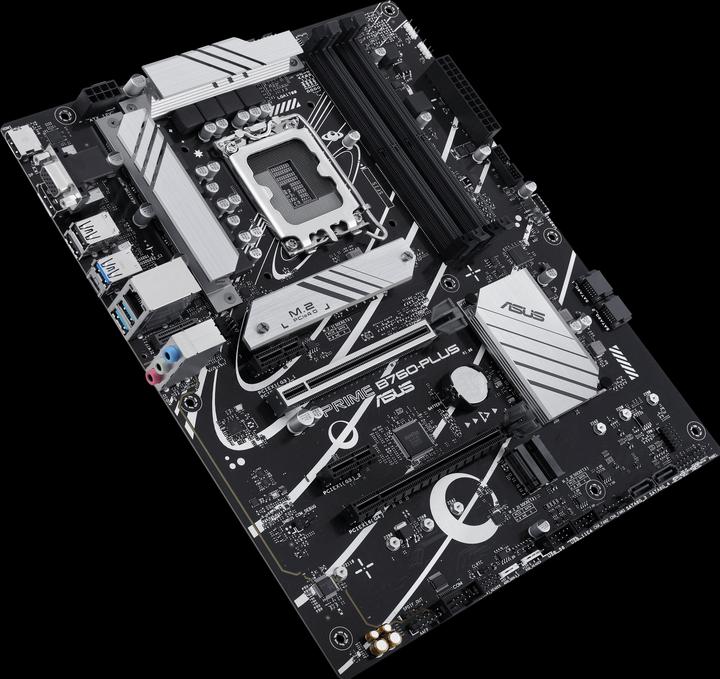

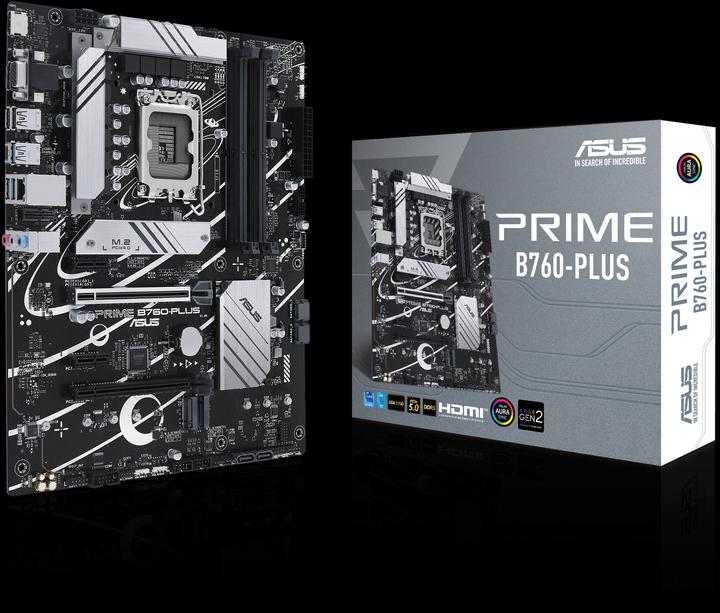

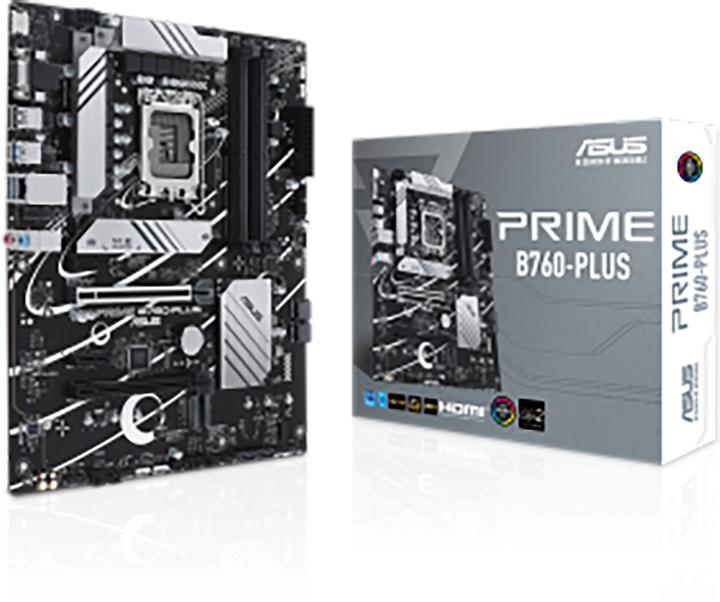

ASUS Prime B760-PLUS
LGA 1700, Intel B760, ATXOnly 4 items in stock
Product details
The ASUS Prime B760-PLUS is an ATX motherboard featuring the Intel B760 chipset and LGA 1700 socket. This motherboard is compatible with 12th and 13th generation Intel Core CPUs, codenamed Alder Lake and Raptor Lake. It supports DDR5 memory with speeds of up to 3,200 MHz and is particularly well-suited for RAM overclocking due to its excellent power delivery.
In addition to a stable power supply with high-quality VRMs, the ASUS Prime B760-PLUS boasts several features that significantly ease system overclocking. The DIGI+ VRM allows for adjustment of VRM voltage and frequency modulation, while the VRM cooler ensures safety during overclocking attempts.
Processor family | Celeron, Core i3, Core i5 |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | S-ATA III (1x) |
Mainboard features | Front panel audio connector |
Item number | 24967603 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1EF0-M0EAY0 |
Release date | 2/3/2023 |
Sales rank in Category Motherboards | 37 of 846 |
Form factor | ATX |
Socket | LGA 1700 |
Chipset | Intel B760 |
Mainboard features | Front panel audio connector |
Operating system compatibility | Windows 10 |
BIOS type | UEFI AMI |
Processor family | Celeron, Core i3, Core i5 |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR5-7200 |
Supported memory speed | 4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz, 7000 MHz, 7600 MHz, 7800 MHz, 8000 MHz, 8200 MHz, 8400 MHz, 8600 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |
Video connections | DisplayPort, HDMI (1x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 (1x) |
Max. port speed | 2.50 Gbit/s |
Audio channel | 7.1 Channel |

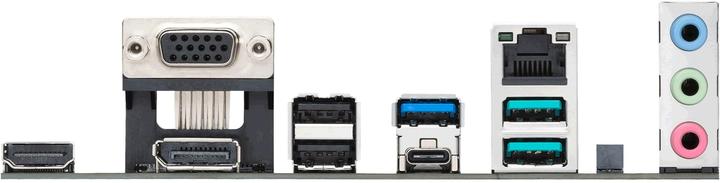

Audio Connections | Headphone output (1x), Jack 3.5mm Line In (1x) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | S-ATA III (1x) |
Expansion slot | PCI Express x1 (Gen 3) (2x), PCI Express x16 (1x) |
PCI express version (max.) | 5 |
Number of fan connector | 3 |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 3.2 Gen 1 (2x), USB-C 3.2 Gen 1 (1x) |
Power connectors | 20+8 pin ATX |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |

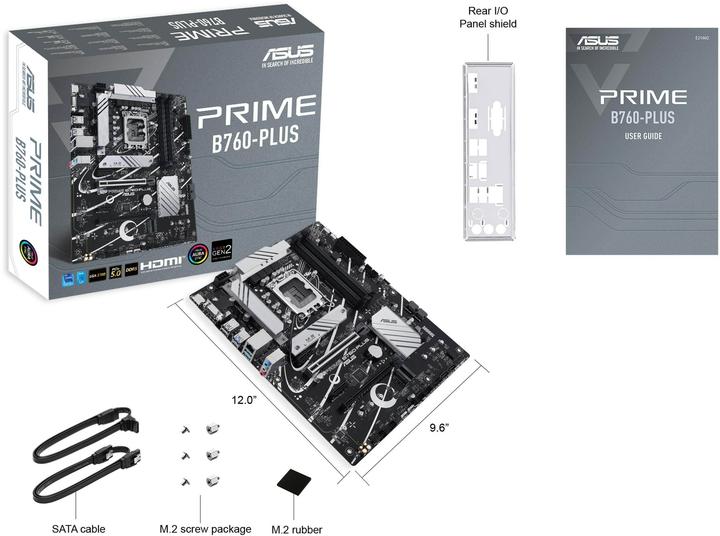

Scope of delivery | Sata Cables |
Length | 244 mm |
Width | 305 mm |
Height | 36 mm |
Weight | 760 g |
Length | 33.40 cm |
Width | 27.30 cm |
Height | 5.60 cm |
Weight | 934 g |
