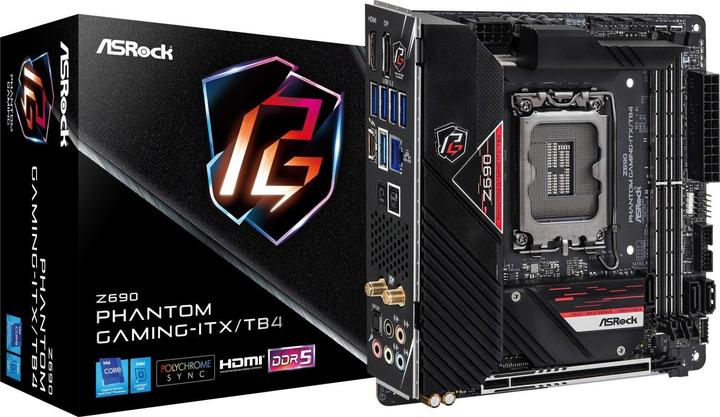

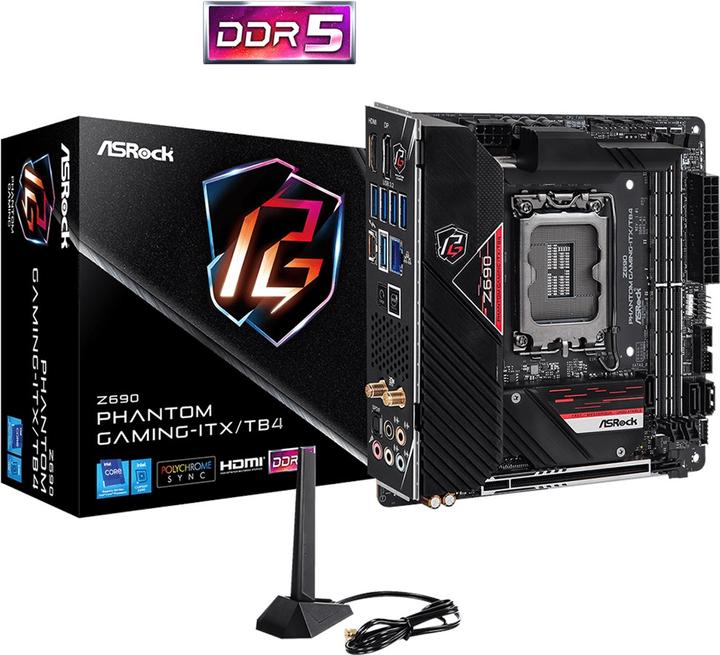

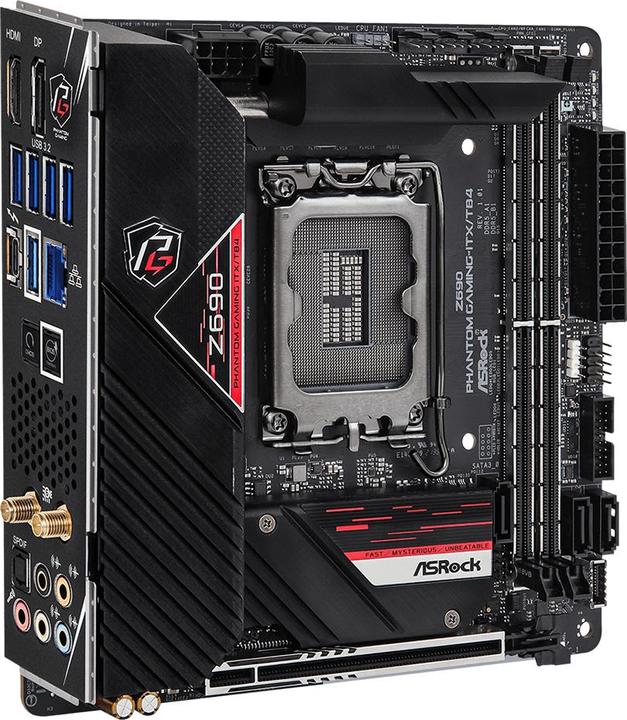

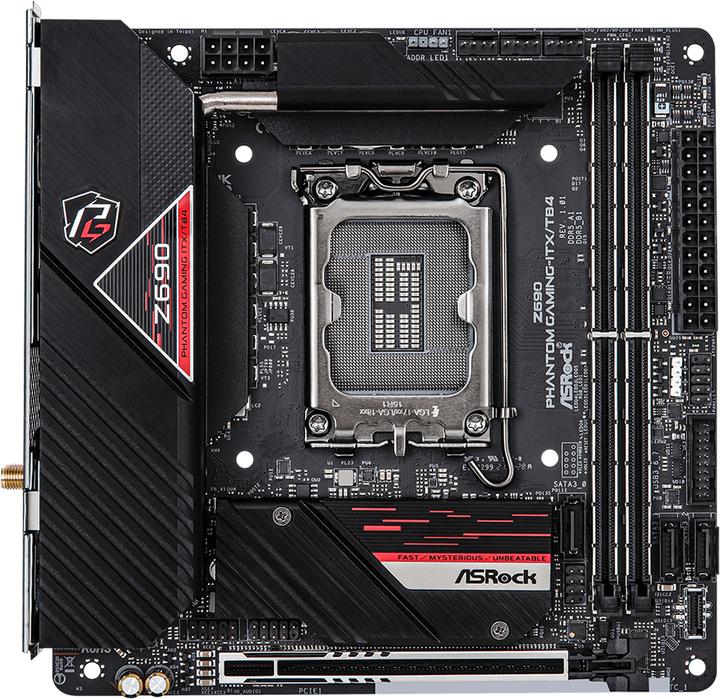

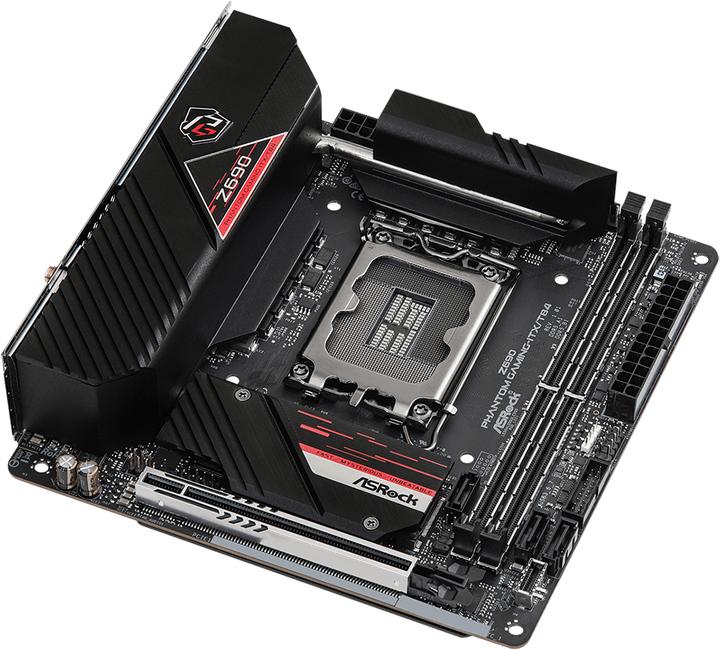

AsRock Z690 Phantom Gaming-ITX/TB4
LGA 1700, Intel Z690 (DDR5), Mini-ITX8 items in stock at supplier
Product details
The AsRock Z690 Phantom Gaming-ITX/TB4 is a powerful Mini-ITX motherboard designed for the latest 12th generation Intel processors. With the LGA 1700 socket, it supports a wide range of Intel® Celeron®, Core™ i3, i5, i7, i9, and Pentium® processors. The motherboard offers support for DDR5-SDRAM with a maximum capacity of up to 64 GB, ensuring high performance and speed for modern applications. The combination of M.2 and SATA III interfaces allows for flexible storage connectivity, while RAID support provides additional data security. With a maximum resolution of 7680 x 4320 pixels, the motherboard is also suitable for high-resolution displays. The integrated 2.5 Gigabit Ethernet interface and Killer E3100G LAN controller ensure a fast and stable network connection, while Wi-Fi 6 (802.11ax) and Bluetooth provide wireless connectivity.
- Supports Intel® 12th generation processors with LGA 1700 socket
- Maximum RAM capacity of 64 GB with DDR5-SDRAM
- Diverse storage options with M.2 and SATA III interfaces
- Integrated 2.5 Gigabit Ethernet interface for high network speed
- Compatible with Wi-Fi 6 (802.11ax) for modern wireless connections.
Processor family | Core i3, Core i5, Core i7 |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 2 x |
Internal connection options | M.2 SATA (1x), S-ATA III (3x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Front panel audio connector, RGB header |
Item number | 19412533 |
Manufacturer | AsRock |
Category | Motherboards |
Manufacturer no. | 90-MXBI10-A0UAYZ |
Release date | 4/2/2022 |
External links |
Form factor | Mini-ITX |
Socket | LGA 1700 |
Chipset | Intel Z690 (DDR5) |
Mainboard features | Front panel audio connector, RGB header |
Operating system compatibility | Windows, Windows 10 |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 6 / 802.11ax |
Processor family | Core i3, Core i5, Core i7 |
Memory form factor | DIMM |
Number of pins | 240 x |
Number of memory modules (RAM) | 2 x |
Max. memory (RAM) | 96 GB |
Memory chip | DDR5-6400 |
Max. RAM OC | 6400 MHz |
Supported memory speed | 6400 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |

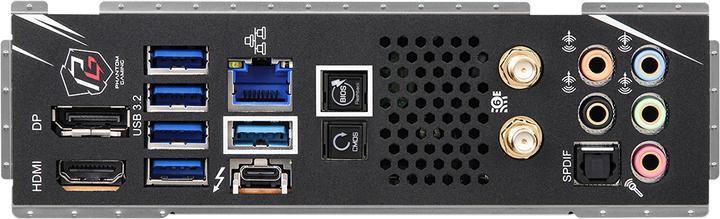

Video connections | DisplayPort (1x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 (1x) |
Ethernet controller brand | Killer NIC |
Ethernet controller | Killer E3100G |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC1220 |
Audio channel | 7.1 Channel |
Audio Connections | Digital Audio Out (1x) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | M.2 SATA (1x), S-ATA III (3x) |
Expansion slot | PCI Express x16 (Gen 5) (1x) |
PCI express version (max.) | 5 |
Number of fan connector | 1 |
USB ports | USB-A |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Sata Cables |
Length | 170 mm |
Width | 170 mm |
Length | 24 cm |
Width | 20 cm |
Height | 10 cm |
Weight | 1 kg |
