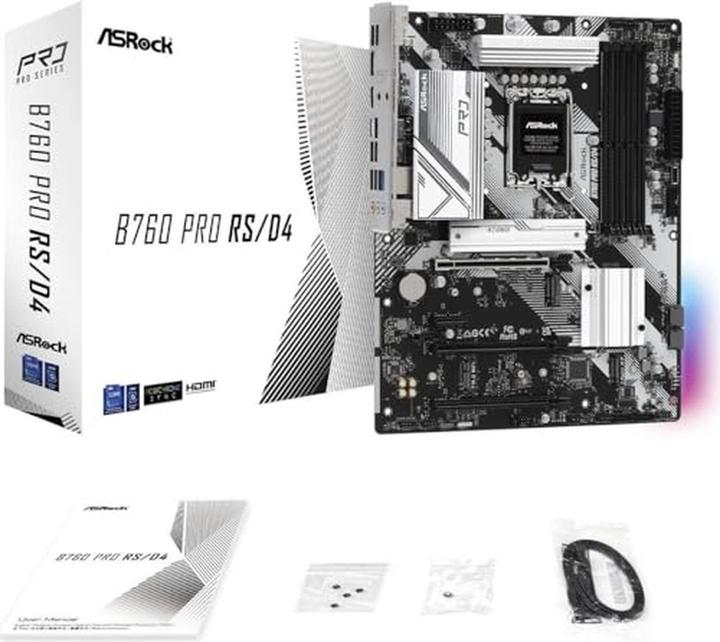

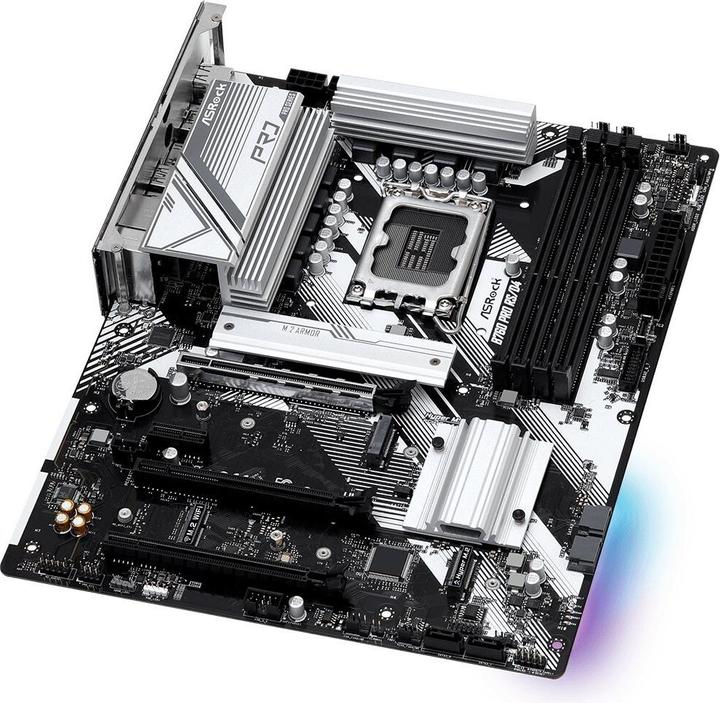

AsRock MB Intel 1700 B760 PRO RS/D4
LGA 1700, Intel B760, ATXPrice in EUR including VAT
free shipping

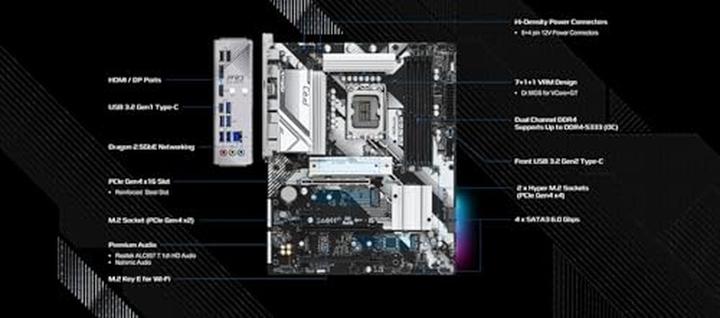

The AsRock B760 Pro RS/D4 is a powerful motherboard designed for use with Intel Core™ processors. It supports the LGA 1700 socket and is compatible with a variety of Intel® Core™ i3, i5, i7, and i9 processors. This motherboard offers a maximum RAM capacity of 128 GB and supports DDR4 SDRAM with speeds of up to 5333 MHz. The four DIMM slots allow for flexible memory expansion. Additionally, the B760 Pro RS/D4 is equipped with modern storage drive interfaces such as M.2 and SATA III, ensuring high data transfer rates and versatile storage options. The RAID support for various levels (0, 1, 5, 10) provides added security and flexibility for data storage. With a 2.5 Gigabit Ethernet port from Realtek, the motherboard is also ready for fast network connections. The ATX form factor ensures easy integration into standard PC cases.
Processor family | Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 (1x), S-ATA III (4x) |
Mainboard features | Front panel audio connector, RGB header |
Item number | 23804442 |
Manufacturer | AsRock |
Category | Motherboards |
Manufacturer no. | 90-MXBL80-A0UAYZ |
Release date | 3/1/2023 |
Form factor | ATX |
Socket | LGA 1700 |
Chipset | Intel B760 |
Mainboard features | Front panel audio connector, RGB header |
Operating system compatibility | Windows |
BIOS type | UEFI AMI |
Processor family | Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4 RAM |
Max. RAM OC | 5333 MHz |
Supported memory speed | 3200 MHz, 4000 MHz, 4400 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |
Video connections | DisplayPort (1x), DVI-D (1x), HDMI (1x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek RTL8125-BG |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC897 |
Audio channel | 7.1 Channel |
Audio Connections | Headphone output (1x), Microphone connection (1x) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | M.2 (1x), S-ATA III (4x) |
Expansion slot | PCI Express x1 (1x), PCI Express x16 (2x) |
PCI express version (max.) | 4 |
Number of fan connector | 4 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (2x), USB-A 3.2 Gen 1 (1x), USB-A 3.2 Gen 1 (5x), USB-A 3.2 Gen 2 (2x) |
Power connectors | 20+4-pin ATX, 20+8 pin ATX |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 2 x Serial ATA cable |
Length | 244 mm |
Width | 305 mm |
Height | 30.50 mm |
Weight | 400 g |
Length | 36 cm |
Width | 30 cm |
Height | 7 cm |
Weight | 1.54 kg |
