AsRock A620M Pro RS
AM5, AMD A620, mATXPrice in EUR including VAT
free shipping

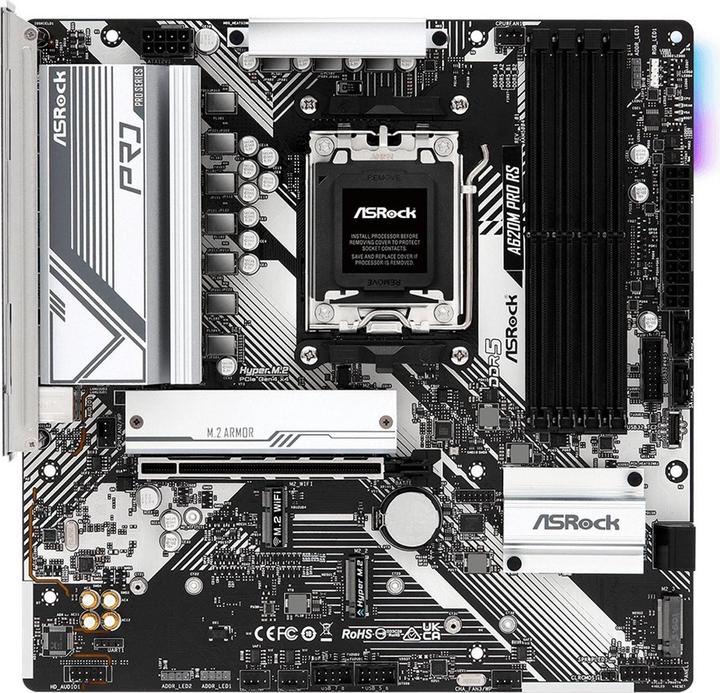

The ASRock A620M Pro RS is a Micro ATX mainboard and has a PCI Express 4.0 slot with full x16 connection for graphics cards. With the AMD socket AM5 you are prepared for powerful processors. Furthermore, the ASRock A620M Pro RS supports DDR5 memory with up to 6,000 MHz via OC. In addition, this motherboard offers helpful features such as a BIOS flashback button or Dr.MOS for automatic voltage modulation.
Processor family | Ryzen 3 7th Gen, Ryzen 5 7th Gen, Ryzen 7 7th Gen, Ryzen 9 7th Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | 24-pin ATX power connector (1x), 8-pin ATX 12V (1x), M.2 PCIe (1x), S-ATA III (4x) |
Mainboard features | Front panel audio connector |
Item number | 32913944 |
Manufacturer | AsRock |
Category | Motherboards |
Manufacturer no. | 90-MXBLN0-A0UAYZ |
Release date | 14/4/2023 |
Form factor | Micro ATX (mATX) |
Socket | AM5 |
Chipset | AMD A620 |
Mainboard features | Front panel audio connector |
Operating system compatibility | Windows, Windows 10 |
BIOS type | UEFI AMI |
Processor family | Ryzen 3 7th Gen, Ryzen 5 7th Gen, Ryzen 7 7th Gen, Ryzen 9 7th Gen |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR5 SDRAM |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |
Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek 8111H |
Max. port speed | 1 Gbit/s |
Chip | Realtek ALC897 |
Audio channel | 7.1 Channel |
Audio Connections | Headphone output (1x), Jack 3.5mm Line In (1x), Microphone |
RAID configuration | 0, 1, 10 |
Internal connection options | 24-pin ATX power connector (1x), 8-pin ATX 12V (1x), M.2 PCIe (1x), S-ATA III (4x) |
Expansion slot | PCI Express x16 (1x) |
PCI express version (max.) | 4 |
Number of fan connector | 5 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (4x), USB-A 3.2 Gen 1 (3x), USB-C 3.2 Gen 1 (1x) |
Power connectors | 24-pin ATX |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Length | 244 mm |
Width | 244 mm |
Weight | 680 g |
Length | 28.70 cm |
Width | 26.60 cm |
Height | 6.30 cm |
Weight | 1.17 kg |
