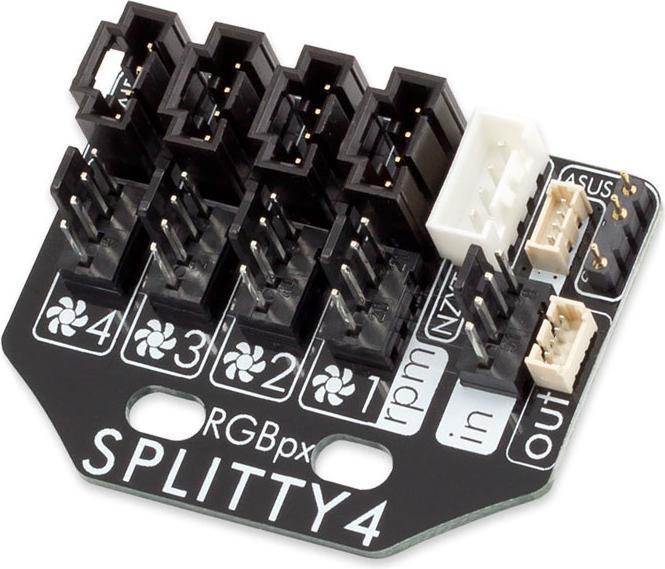

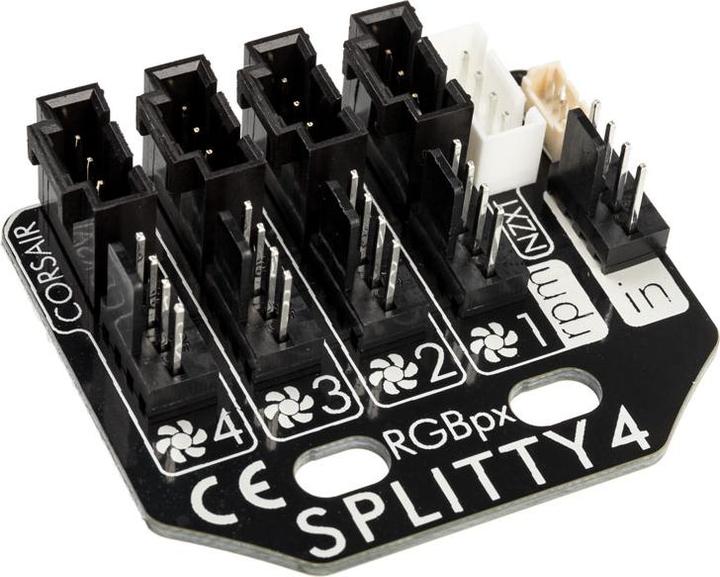

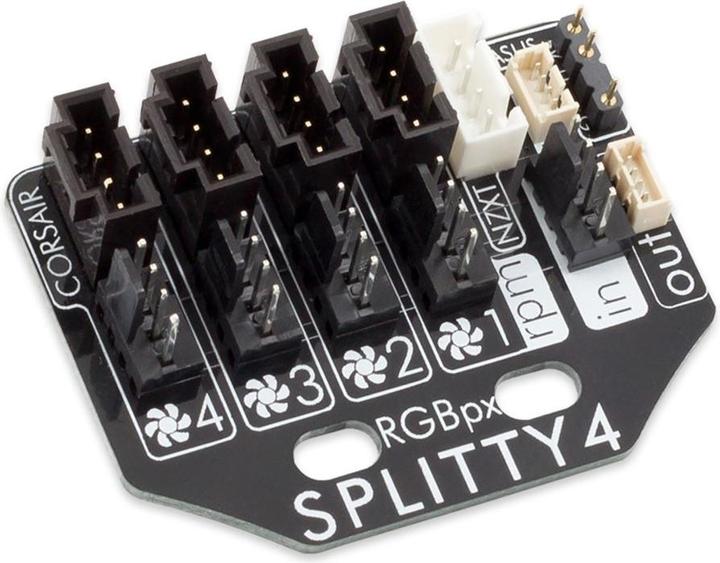

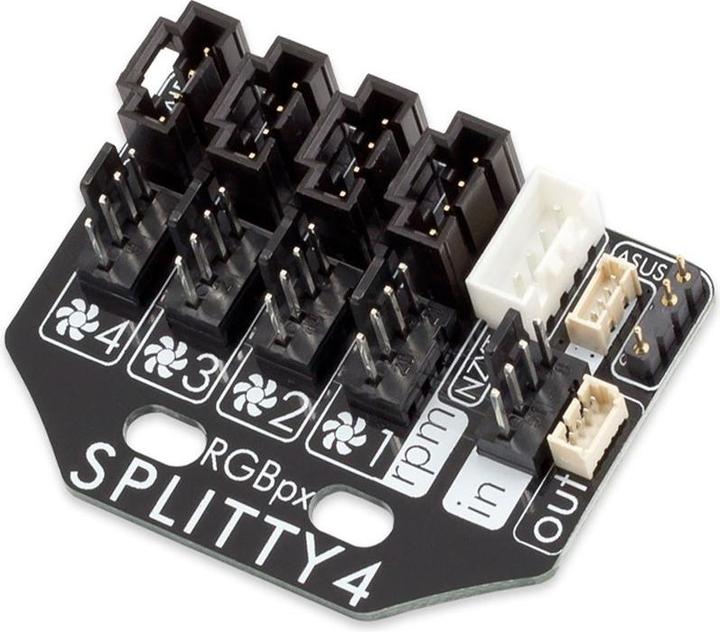

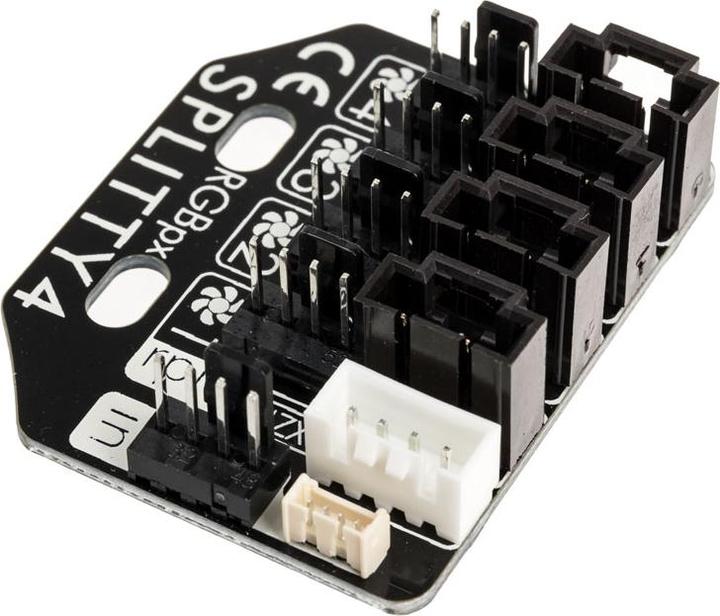

Splitter for fan power supply and RGBpx lighting control. This compact board combines two functions: a 4-way splitter for powering up to four fans from a single fan connector and a connection adapter for the lighting systems of various fan manufacturers to the RGBpx system. Both functions operate independently; the RGBpx Splitty4 can also be used "only" as a fan splitter or as a pure lighting adapter.

Fan splitter: In its function as a fan splitter, both 3-pin and 4-pin fans can be used, provided that the connected fan output supports these types (voltage-controlled/PWM signal). The RPM signal from a connected fan (connector labeled "rpm") is routed back to the fan output.

Technical details: Manufacturer Corsair (four connectors for a maximum of four fans, "LED hub" not required) LL120 RGB, LL140 RGB (16 LEDs per fan), HD120 RGB, HD140 RGB (12 LEDs per fan), ML120 PRO RGB-LED, ML140 PRO RGB-LED (4 LEDs per fan). Manufacturer NZXT (one connector, additional fans can be connected to the previous ones, for a total of up to eight fans) Aer RGB120, Aer RGB140 (8 LEDs per fan).

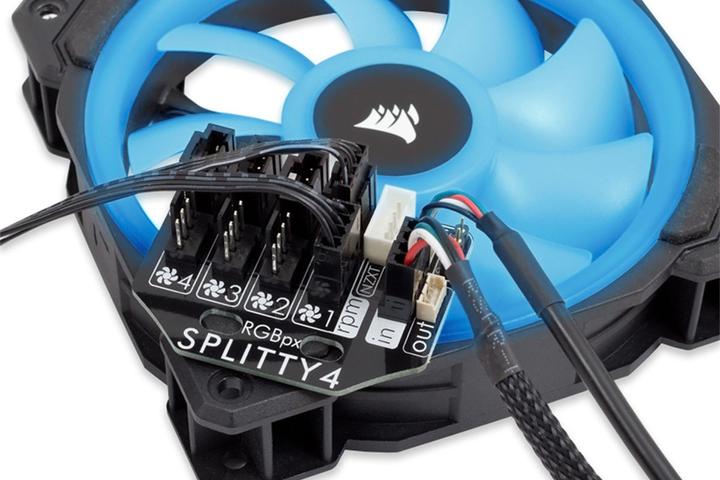

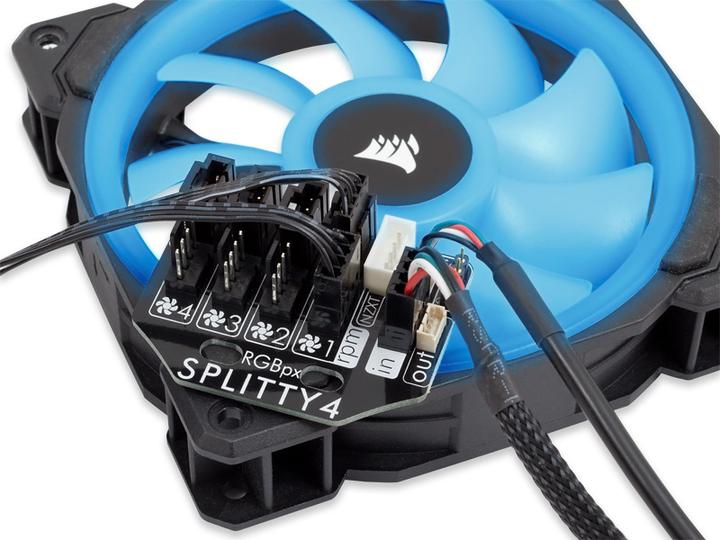

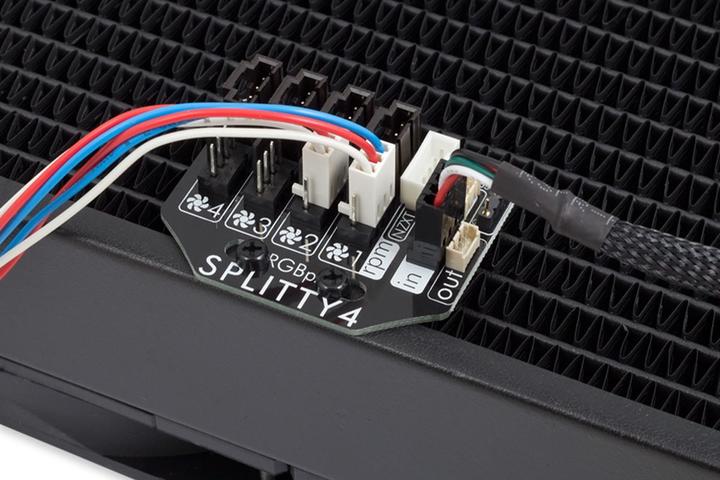

Installation: The board can be easily attached to two adjacent fans, allowing for a visually appealing cable layout without the usual "cable clutter."

Guidelines and notes: Mixed connection of lighting systems from different manufacturers is not possible!

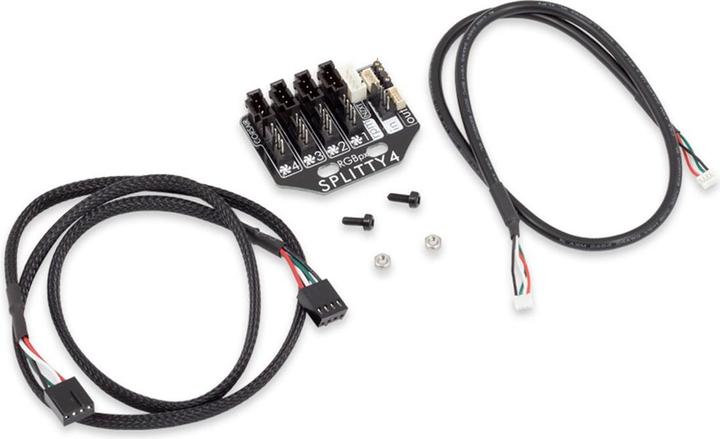

Scope of delivery: RGBpx Splitty4 board, mounting materials, 4-pin fan connection cable, approximately 70 cm, RGBpx connection cable, approximately 50 cm.
