Switching sequence: Momentary
Contact arrangement: Single pole double throw switch (SPDT)
Mounting type: Panel mount
Panel cutout diameter: 6.5 mm
Rated current: 4 A @ 30 V dc
Rated AC voltage: 125 V
Rated DC voltage: 30 V
Actuator color: Silver
Operating temperature range: -40 to +85 °C

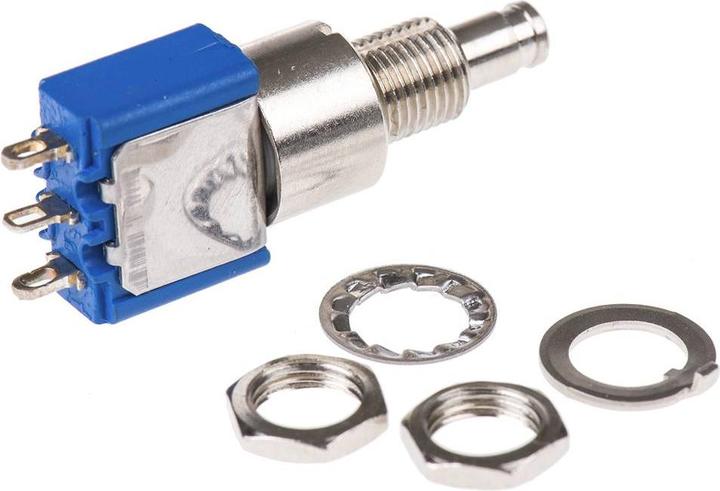

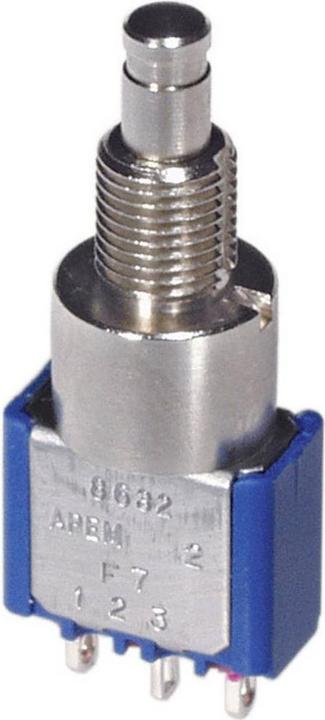

Apem Miniature Pushbutton Switch. The Apem 8000 series miniature switches include momentary and latching switches in variants as single pole double throw and double pole double throw switches. The compact miniature housing features a stainless steel body and epoxy-sealed terminals. The actuator element made of nickel-plated brass is compatible with interchangeable colored caps. Optional protective caps are also available. Features and benefits: Electrical lifespan: 30,000 switching cycles, Insulation resistance: 1,000 MOhm @ 500 V dc. Terminals available in gold-plated brass or gold-plated silver.

Available in this series:
Order No. 103-5732: Momentary switch as single pole switch
Order No. 103-5748: Latching switch as single pole switch
Order No. 103-5760: Momentary switch as double pole switch
Order No. 103-5776: Latching switch as double pole switch
Order No. 103-5782: Black pushbutton cap
Order No. 103-5798: Red pushbutton cap
Order No. 103-5805: Green pushbutton cap
Order No. 119-3692: Protective cap
Order No. 692-8428: Momentary switch as single pole switch
Order No. 692-8430: Latching switch as single pole switch
Order No. 692-8437: Momentary switch as double pole switch
Order No. 692-8434: Latching switch as double pole switch.
