Contact arrangement: Single pole on/off switch (SPST)
Switching sequence: Latching
Rated contact current: 10 A @ 24 V dc
Mounting type: Front panel mounting
Connection type: Solder, spade terminals
Actuator length: 13.5 mm
Actuator material: Polyamide
Contact resistance: 10 mΩ
Contact material: Silver-nickel alloy

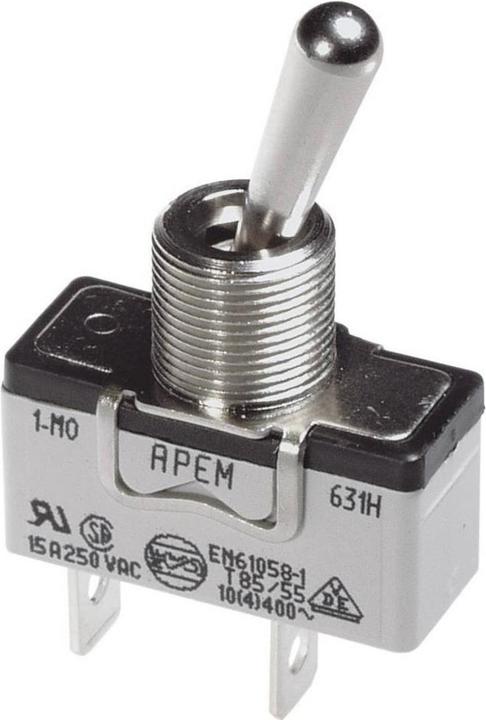

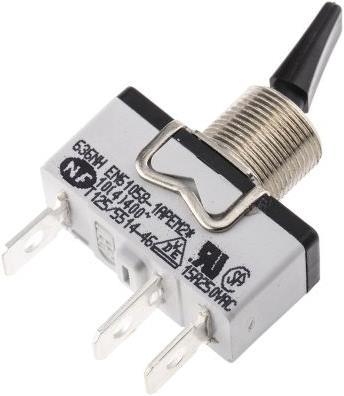

All with contact resistance of 10 mΩ or less. For preloaded switches, "(ON)" refers to the momentary position. Toggle switches are standard, 15 A, with a flat insulated lever. Available in single and double pole configurations with a choice of flat insulated or traditional metal levers. Features a 12 mm mounting socket and 250 (1/4") terminals. Brass actuator and melamine/polyester housing with silver/nickel alloy contacts.
