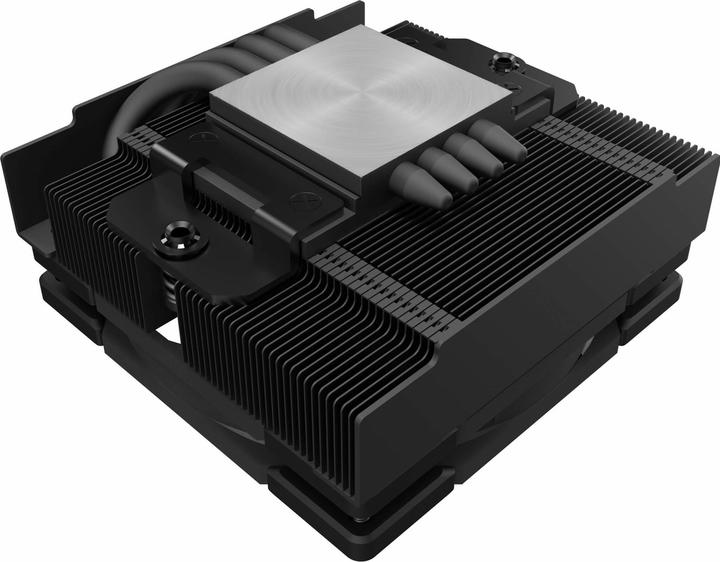

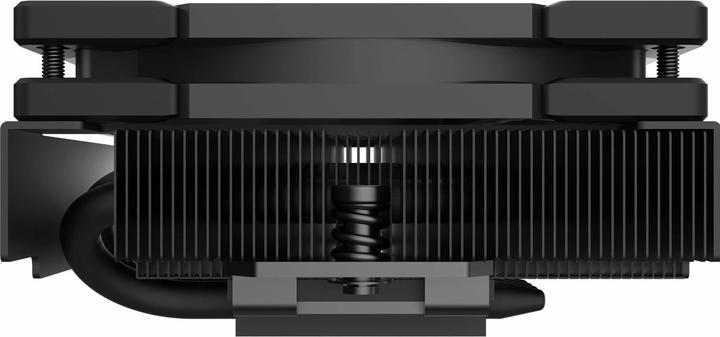

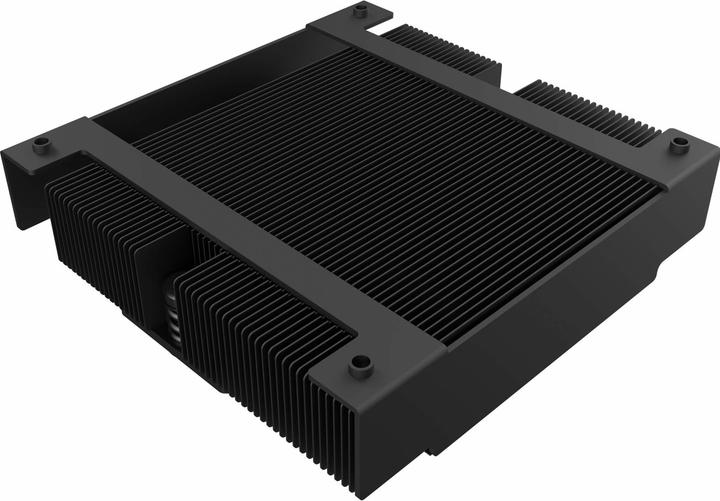

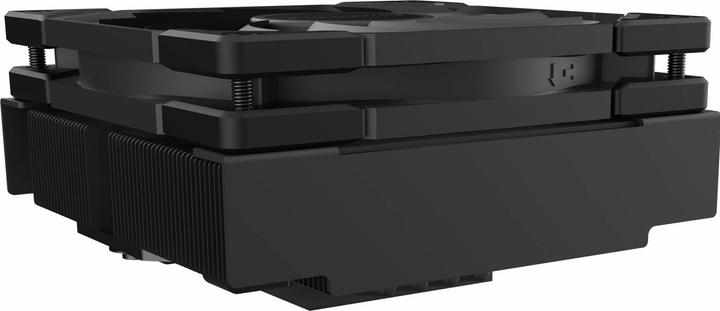

The Alpenföhn Panorama 2 CPU cooler, crafted with German engineering, offers excellent cooling in a compact form factor. The combination of an award-winning Jetstream fan and high-end heat pipes ensures maximum heat dissipation and near-silent operation.
Socket | AM4, AM5, LGA 115X, LGA 1200, LGA 1700 |
Height (with fan) | 47 mm |
Diameter | 92 mm |
Number of fans | 1 x |
Max. TDP | 95 W |
Airflow | 4818 m³/h |
power connector | 4-pin PWM |
Item number | 40111366 |
Manufacturer | Alpenföhn |
Category | CPU coolers |
Manufacturer no. | 84000000212 |
Release date | 16/11/2023 |
Colour | Black |
Exact colour description | Black |
CPU cooler design | Top Blower |
Fan type | Top-Down Cooler |
Socket | AM4, AM5, LGA 115X, LGA 1200, LGA 1700 |
Cooler mounting | Screw |
Supported fan sizes | 92mm |
Number of heatpipes | 4 |
Diameter heat pipe | 6 mm |
Materials radiator core | Copper |
Material cooling fins | Aluminium |
Diameter | 92 mm |
Number of fans | 1 x |
Maximum mountable fan | 1 |
Max. Speed | 3000 RPM |
Max. TDP | 95 W |
Airflow | 4818 m³/h |
Static pressure | 0.38 Pa |
Max. noise level | 37.60 dB |
LED colour | without LED |
power connector | 4-pin PWM |
Power consumption | 3 W |
Voltage | 12 V |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Width (with fan) | 94 mm |
Length (with fan) | 93.50 mm |
Height (with fan) | 47 mm |
Weight | 350 g |
Length | 13 cm |
Width | 13 cm |
Height | 10 cm |
Weight | 570 g |
How often does a product of this brand in the «CPU coolers» category have a defect within the first 24 months?
Source: GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: GalaxusHow often is a product of this brand in the «CPU coolers» category returned?
Source: Galaxus
The cooling performance is the second best in the field, the noise level is restrained in the sensible speed ranges and use in a barebone is just about possible. In addition, the mounting brackets allow the cooler to be mounted in 90-degree increments in order to direct the exhaust air flow...
With the Panorama 2, Alpenföhn has developed a stylish and competitive low-profile cooler. The simple black and elegant look, the simple but solid mounting system and the good cooling performance in relation to its size are particularly impressive. This is probably the biggest advantage of the Panorama 2, as its compact dimensions make this CPU cooler particularly suitable for installation in small...
