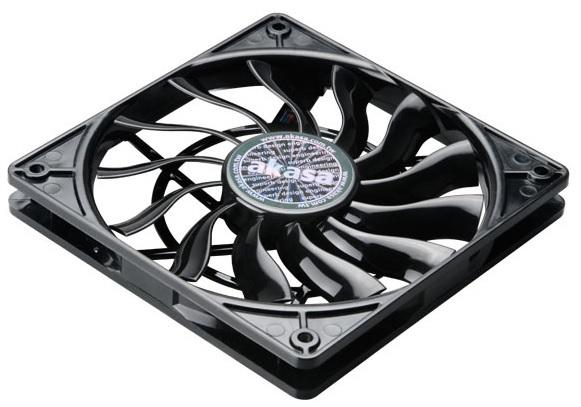

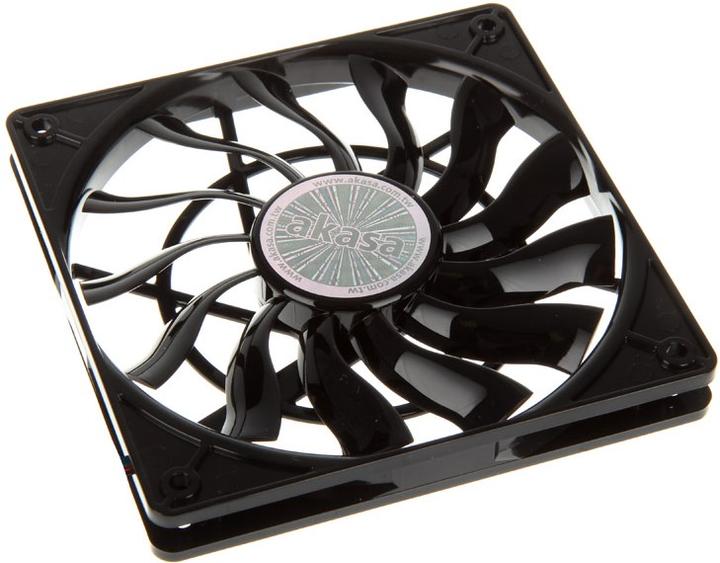

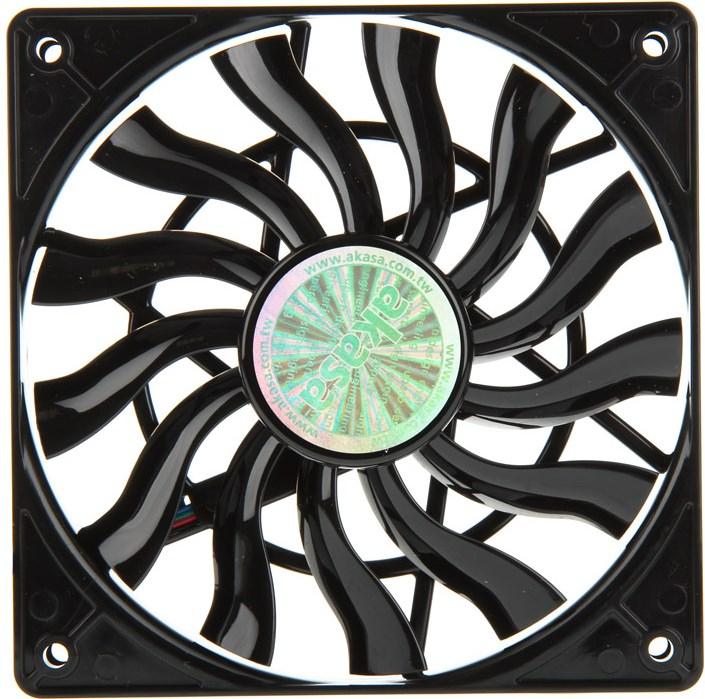

Akasa AK-FN078 Slimline PWM fan
120 mm, 1 x6 pieces in stock at supplier
Product details
Whether it's cases, coolers, fans, or cables - Akasa offers a wide range of PC accessories and has been enriching the community for many years with innovative and affordable products. The Akasa AK-FN078 Slimline is a top-notch 120mm PWM fan, particularly suitable for small cases and HTPCs.

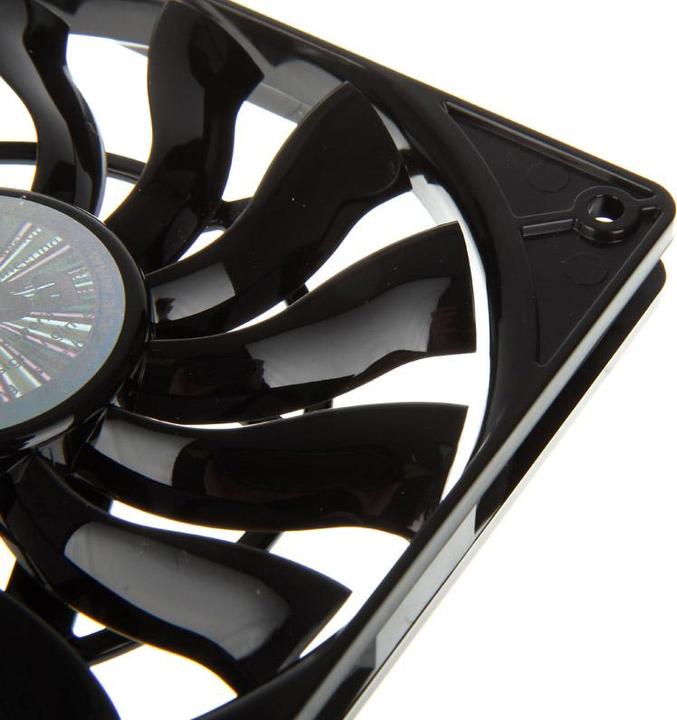

The curved rotor blades of the Akasa AK-FN078 generate an airflow of 92.19 m³/h at a static pressure of 1.36 mm/H2O with a speed range of 600 to 1,600 RPM. The fan is supported by an enter bearing and reaches a maximum noise level of only 30 dB(A) at full speed.
The AK-FN078 is controlled via a PWM signal and can automatically adjust to temperature changes. With a slim depth of just 15 mm, the fan is thin enough to fit into very small cases and HTPCs.
Technical details:
- Dimensions: 120 x 120 x 15 mm (W x H x D)
- Color: Black
- Noise level: max. 30.32 dB(A)
- Speed: 600 - 1,600 RPM
- Airflow: 92.19 m³/h
- Static pressure: 1.36 mm H²O
- Bearing: Enter Bearing
- Voltage: 12 V
- Connector: PWM 4-Pin
- Package includes: 4 screws.
Fan dimension | 120 mm |
Items per sales unit | 1 x |
power connector | 4-pin PWM |
Airflow | 5531.40 m³/h |
Max. noise level | 30.32 dB |
LED colour | without LED |
Item number | 12831902 |
Manufacturer | Akasa |
Category | PC fans |
Manufacturer no. | AK-FN078 |
Release date | 3/3/2020 |
External links |
Colour | Black |
Exact colour description | Black |
Fan dimension | 120 mm |
PC fan type | PWM fan |
Fan type | Passive |
Max. Speed | 1.60 RPM |
Max. noise level | 30.32 dB |
Airflow | 5531.40 m³/h |
Static pressure | 1.36 mmH20 |
LED colour | without LED |
power connector | 4-pin PWM |
input voltage | 12 V |
Items per sales unit | 1 x |
Scope of delivery | 4x screws |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Length | 120 mm |
Width | 120 mm |
Height | 15 mm |
Weight | 100 g |
Length | 14 cm |
Width | 12.50 cm |
Height | 2 cm |
Weight | 110 g |
