Akasa AK-CC6609EP01 Low Profile CPU Cooler - Socket LGA 1700, 21.8 mm Height

21.80 mm
Price in EUR including VAT
1Ratings
Delivered between Tue, 22/7 and Thu, 24/7
9 pieces in stock at supplier
Free shipping starting at 39,–

Product details

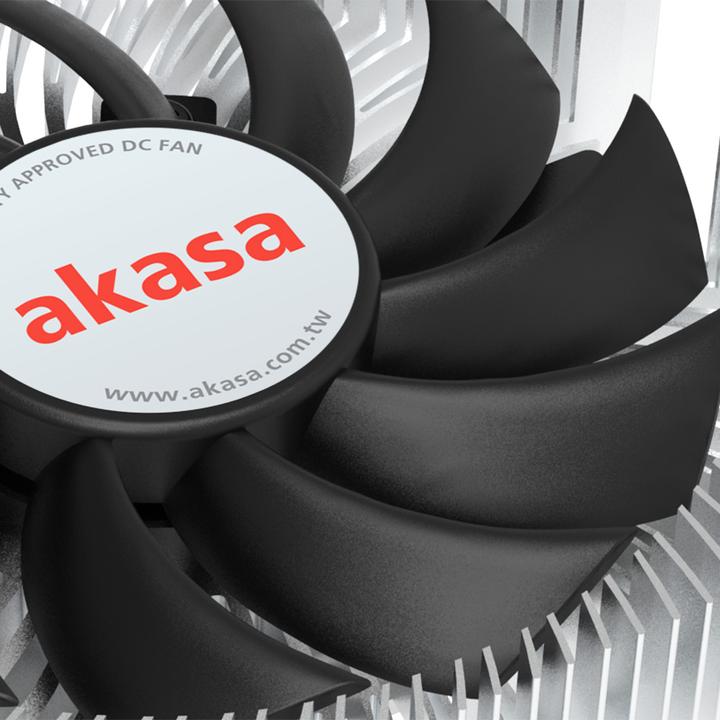

The AK-CC6609EP01 Low Profile CPU Cooler is designed for processors with the LGA 1700 socket. Thanks to its bearing, the fan is durable and quiet. The bearing is resistant to contaminants and high temperatures. Additionally, with PWM control, the fan operates at a pleasant noise level.

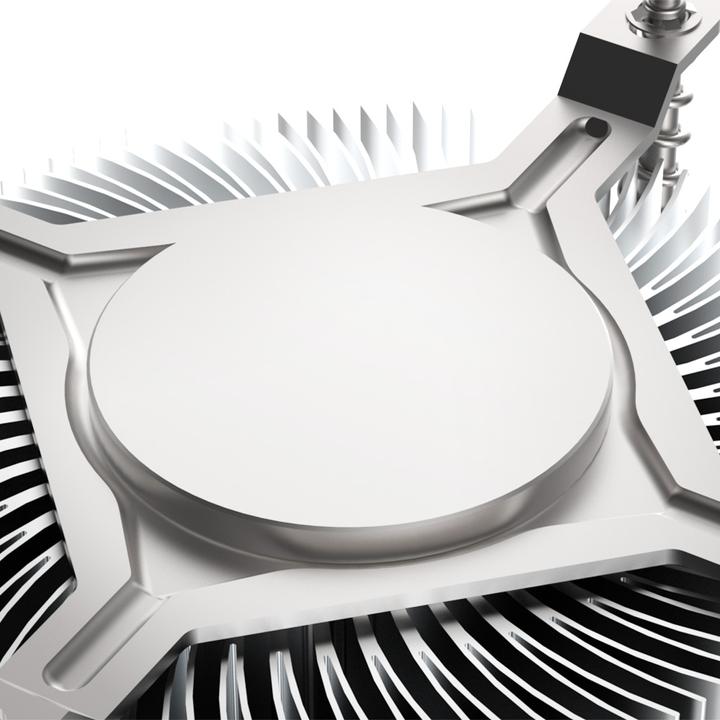

The aluminum core is in direct contact with the heat spreader of your CPU and also connects to the cooling fins, which are arranged in a circular pattern. This design provides a larger surface area and enhances heat dissipation.

Easy Installation

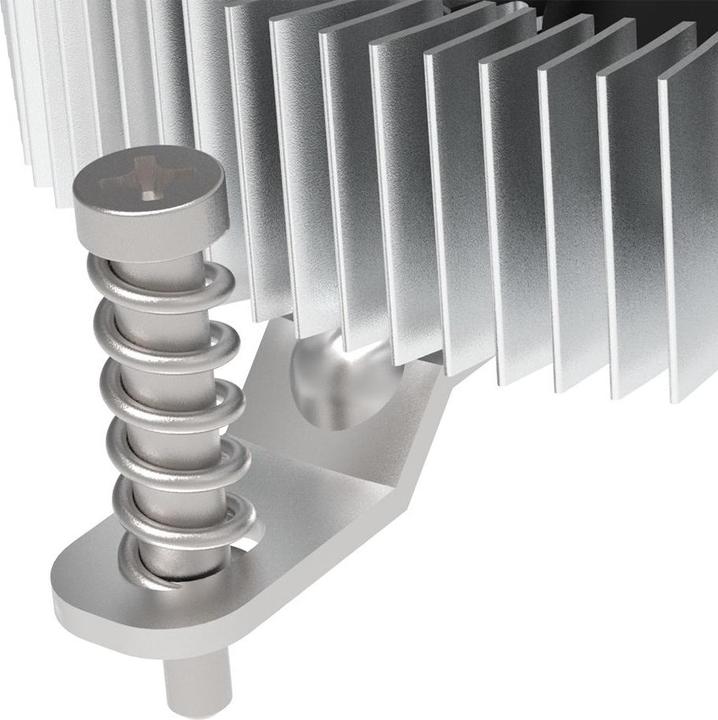

Thanks to the pre-assembled metal screws, installing the cooler is very straightforward. It simply rests over the mounting holes and is then secured with the included metal plate. The top-down design means you don't have to worry about large heatsinks or fans getting in the way.

Technical Details

  • Dimensions: 94.8 x 21.8 x 94.8 mm (W x H x D)
  • Color: Black, Silver
  • Material: Plastic, Aluminum, Copper
  • TDP Support: 35 W
  • Connectors: 1x 4-Pin PWM
  • Noise Level: max. 36 dB(A)
  • Fan Speed: min. 600, max. 3,000 RPM
  • Airflow: 39.84 m³/h
  • Static Pressure: 1.81 mmH2O
  • Fan Diameter: 75 mm
  • Fan Voltage: 12 V DC
  • Fan Current: max. 0.19 A
  • Compatibility: Intel LGA 1700 socket
  • Lifespan: 40,000 hours
  • Package Contents: 1x Akasa AK-CC6609EP01 Low Profile CPU Cooler - LGA 1700 socket, 21.8 mm height, 1x mounting plate.

Key specifications

Socket
LGA 1700
Height (with fan)
21.80 mm
Diameter
75 mm
Number of fans
1 x
Max. TDP
35 W
Airflow
2390.40 m³/h
power connector
4-pin PWM
Item number
23320577

General information

Manufacturer
Akasa
Category
CPU coolers
Manufacturer no.
AK-CC6609EP01
Release date
2/12/2022

Colour

Colour
Black
Exact colour description
Aluminium, Black

Cooler properties

CPU cooler design
Top Blower
Fan type
Top-Down Cooler
Socket
LGA 1700

Heat sink properties

Materials radiator core
Aluminium
Material cooling fins
Aluminium

Fan dimensions

Diameter
75 mm

Fan properties

Number of fans
1 x
Max. Speed
3000 RPM
Max. TDP
35 W
Airflow
2390.40 m³/h
Static pressure
0.18 Pa
Max. noise level
36 dB
LED colour
without LED
Fan bearing type
Double ball bearing

Connections

power connector
4-pin PWM

Power supply

Power consumption
35 W
Voltage
12 V

Scope of delivery

Scope of delivery
1x Akasa AK-CC6609EP01 Low Profile CPU Cooler - Socket LGA 1700, 21.8 mm height

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Width (with fan)
94.80 mm
Length (with fan)
94.80 mm
Height (with fan)
21.80 mm
Weight
128.80 g

Package dimensions

Length
10.40 cm
Width
10.20 cm
Height
5 cm
Weight
198 g
