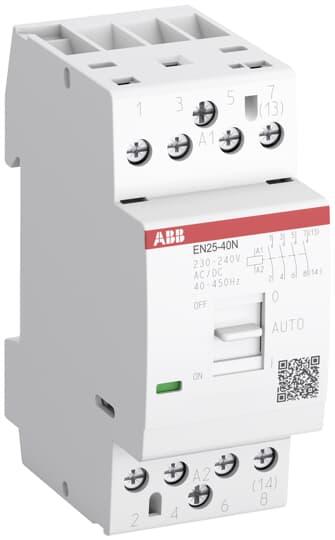

ABB Stotz S&J EN Installation Contactors EN25-40N-06

Manufacturer: ABB Stotz S&J
Designation: EN Installation Contactors
Type: EN25-40N-06
Rated Operating Voltage: 220 to 400 V
Rated Operating Current: 25 A
Usage Category: 7
Rated Control Voltage: 230 to 240 V
Type of Operating Voltage: AC/DC
Type of Control Voltage: AC/DC
Number of Contacts as Normally Open: 4
Manual Switch Lever: Yes
Width in Division Units: 2
Installation Depth: 58 mm
Additional Devices Possible: Yes
With Day/Night Function: Yes
Buzz-Free: Yes
Protection Class (IP): IP20

ABB Stotz S&J EN Installation Contactors EN25-40N-06: Additional Details
4-pole contactors EN25..N with a width of 36 mm control 3-phase loads up to 25 A and are available in various contact configurations and coil voltages. They switch electrical heating devices, water heaters, motors for pumps, ventilation, and other drives as well as lighting. Thanks to an integrated coil circuit, they operate with both AC and DC control voltages. As a result, the devices are completely buzz-free and quiet when switching. EN25..N features an integrated switch for selecting between three operating modes: manually off (even with control signal present), automatic operation (normal contactor function), and manually on with a return to automatic operation as soon as the coil is powered again. This offers numerous advantages: for example, during commissioning, a functional test of the load circuit can be performed even without a control signal, and with a control signal present, the load circuit can be quickly and easily turned off at any time. An auxiliary switch that can be mounted on the left side, seal caps, and a spacer complement the range. EN25..N has an installation design and meets the household standard EN61095, making them particularly suitable for panel installation.
