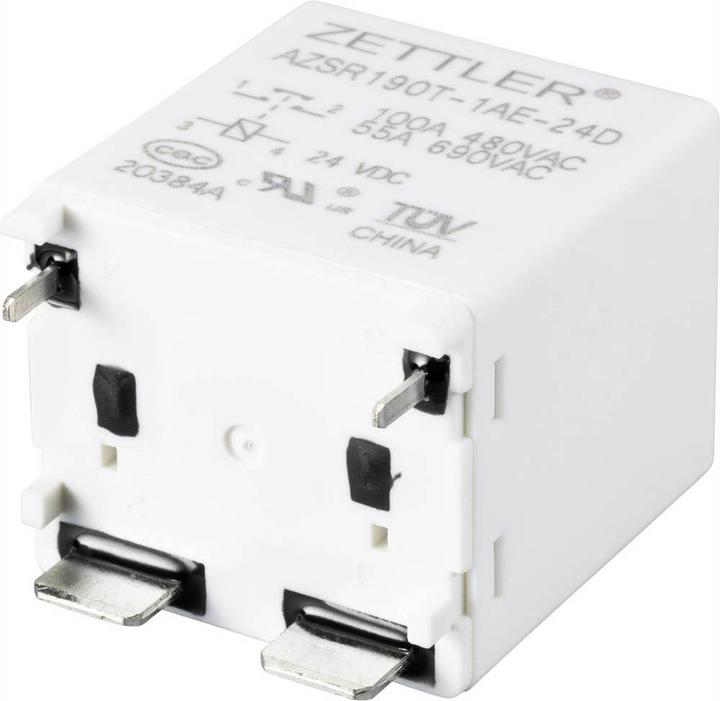

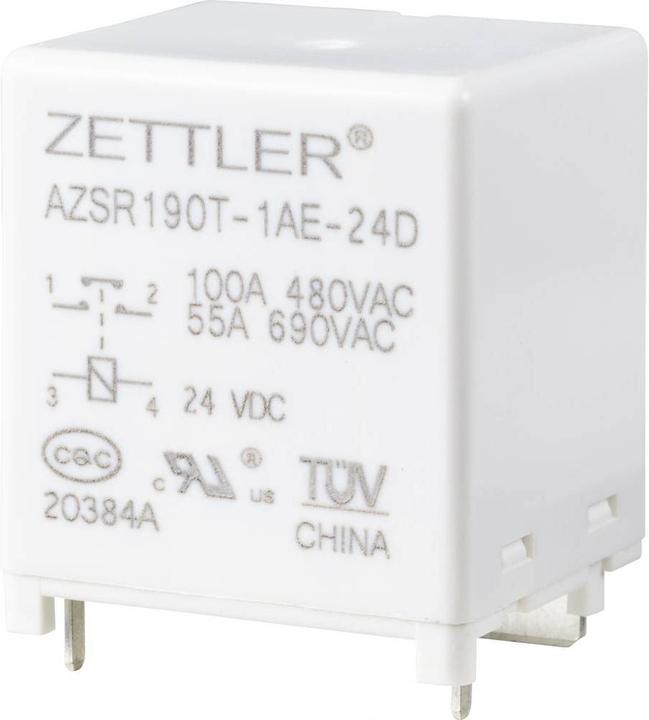

100 A miniature power relay, 24 V
Price in EUR including VAT
Free shipping starting at 39,–
The Zettler 100 A miniature power relay is a high-performance step switch model designed for applications with a nominal voltage of 24 V/DC. With a maximum switching power of 48,000 VA and a switching current of up to 100 A, this relay provides a reliable solution for demanding electrical controls. It is equipped with a normally closed contact and ensures a high insulation voltage of 800 V/AC, making it ideal for use in various industrial and commercial applications. The relay is RoHS compliant and features a wide operating temperature range of -40 °C to +85 °C, highlighting its versatility under different environmental conditions. Weighing only 85 g and with compact dimensions, it is easy to install and integrate.
input voltage | 24 V |
Scope of delivery | 1 pc. |
Output voltage | 24 V |
Output current type | DC |
Electric current output | 100 A |
Relay type | Step switch |
Item number | 21609449 |
Publisher | Zettler |
Category | Relays |
Manufacturer no. | AZSR190T-1AE-24D |
Release date | 3/8/2022 |
Relay type | Step switch |
input voltage | 24 V |
Output voltage | 24 V |
Electric current output | 100 A |
Output current type | DC |
Resistor | 300 Ω (ohm) |
Switching function | Normally open |
Number of openers | 1 x |
Number of closers | 1 x |
Max. Switching capacity | 48 kW |
Manufacturer Type | AZSR190T-1AE-24D |
Smart Home | Not compatible |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 pc. |
Length | 38 mm |
Width | 33 mm |
Height | 43 mm |
Weight | 85 g |
